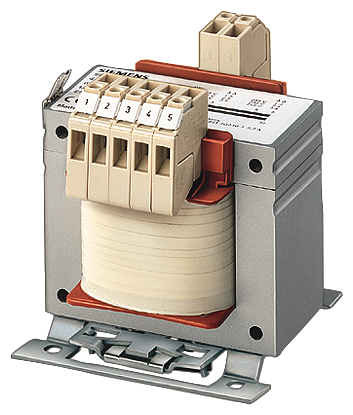

4AM6142-5FT10-0FA0 - TRANSFORMER SITAS, PHASES:1,

4AM6142-5FT10-0FA0 - TRANSFORMER SITAS, PHASES:1,

by Siemens
$998.21 - $998.21
$998.21
$998.21 - $998.21
$998.21

TRANSFORMER SITAS; PHASES:1; PN/PN(S6)(KVA):1,6 /7,3; UPRI(V):500+/-5%; USEC(V):230; ISEC(A):6,96; F(HZ):50...60; VECTOR GR./SHIELD WNG.:II0 /0; TA/ISOKL:40 /B; IP00; TYPE OF TERMINALS:SCREW/TAB CONNECTION; INSTALLATION:SCREW; EN 61558-2-1, -2-2, -2-4 >CONTROL CIRCUIT TRANSFORMER< >ISOLATION TRANSFORMER<



Specifications
Item Value
Country of Origin CZ
Depth 138 millimetre
Width 176 millimetre
Height 164 millimetre
Protection type IP IP00
max. primary voltage 1 525 volt
max. primary voltage 2 500 volt
max. primary voltage 3 475 volt
min. primary voltage 1 525 volt
min. primary voltage 2 500 volt
min. primary voltage 3 475 volt
max. secondary voltage 1 230 volt
min. secondary voltage 1 230 volt
Rated performance 1600 volt ampere
designed as safety transformer false
suitable for series installation false
designed as isolating transformer false
designed as compensator transformer false
suitable for circuit-board mounting false
Insulation Material Class acc. to IEC 85 B
relative short-circuit voltage 2.41 percent
