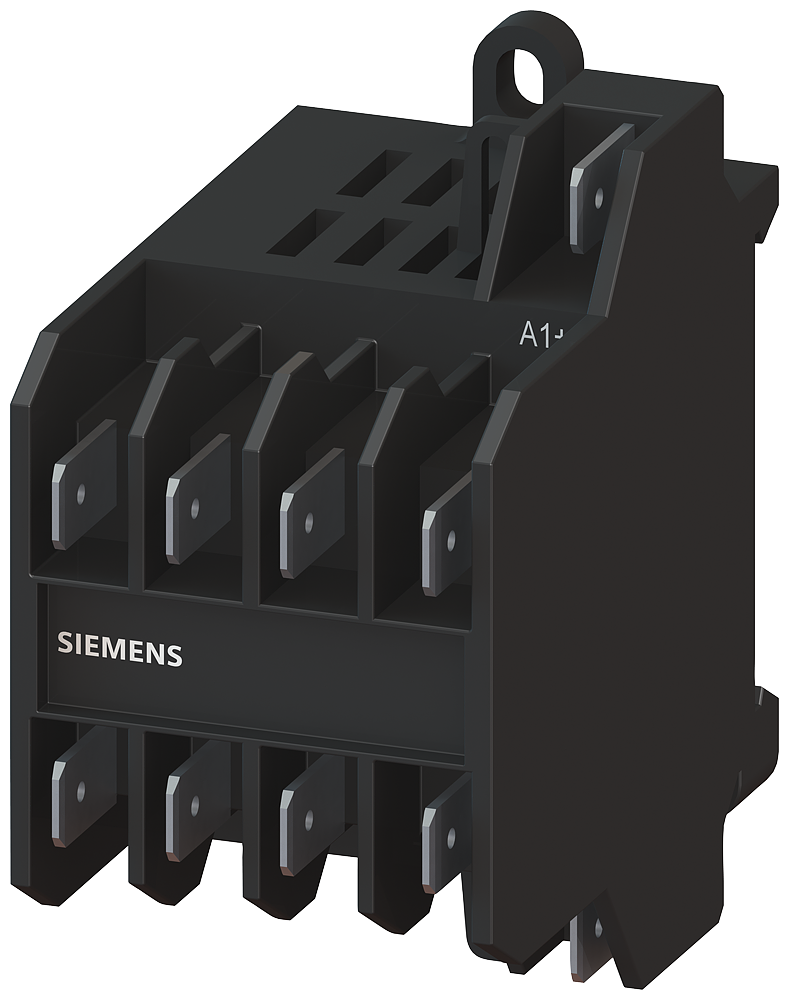

3TG1001-1BB4 - CONTACTOR, TAB CONNECTOR, 3NO+1NC, 24VDC

3TG1001-1BB4 - CONTACTOR, TAB CONNECTOR, 3NO+1NC, 24VDC

by Siemens
$33.22 - $33.22
$33.22
$33.22 - $33.22
$33.22

Power Relay, SIMIREL AC-1 Current = 16 amps AC-1 Power = 10 KW AC-2 and AC-3 Current=8.4 amps AC-2 and AC-3 Power = 4 KW 24VDC Flat Connector, 3NO+1NC



Specifications
Item Value
Type of actuation DC
Country of Origin TR
Number of main contacts as opener 0
suitable for series installation true
Connection type Flat plug-in connector
Number of auxiliary contacts as opener 1
Max. rated DC voltage for controls 24 volt
Number of auxiliary contacts as shutter 0
min. rated control voltage Us with DC 24 volt
Number of making contacts and main contacts 3
Rated operating power with AC-3, 400 V 4 kilowatt
Rated operating current Ie with AC-1, 400 V 16 ampere
Rated operating current Ie with AC-3, 400 V 8.4 ampere
