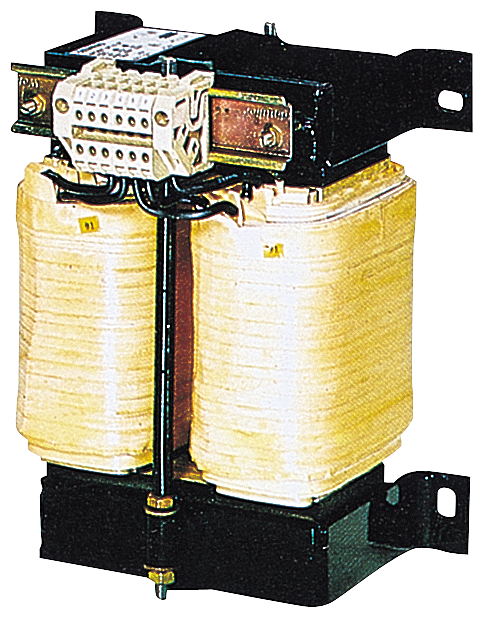

4AT3032-5AT10-0FA0 - 1-PH. SITAS-TRANSFORMER SCREW CONT.
by Siemens
Original price
$1,937.87
-
Original price
$1,937.87
Original price
$1,937.87
$1,937.87
-
$1,937.87
Current price
$1,937.87
>ISOLATION TRANSFORMER< CIRCUIT TRANSFORMER< 61558-2-1, -2-2, -2-4 >CONTROL INSTALLATION:SCREW; EN TERMINALS:SCREW CONNECTION; TA/ISOKL:55 /H; IP00; TYPE OF VECTOR GR./SHIELD WNG.:II0 /0; ISEC(A):17,4; F(HZ):50...60; UPRI(V):400+/-5%; USEC(V):230; PN/PN(S6)(KVA):4 /17,8; TRANSFORMER SITAS; PHASES:1;
| Item | Value |
|---|---|
| Country of Origin | CZ |
| Depth | 155 millimetre |
| Width | 164 millimetre |
| Height | 270 millimetre |
| Protection type IP | IP00 |
| max. primary voltage 1 | 420 volt |
| max. primary voltage 2 | 400 volt |
| max. primary voltage 3 | 380 volt |
| min. primary voltage 1 | 420 volt |
| min. primary voltage 2 | 400 volt |
| min. primary voltage 3 | 380 volt |
| max. secondary voltage 1 | 230 volt |
| min. secondary voltage 1 | 230 volt |
| Rated performance | 4000 volt ampere |
| designed as safety transformer | false |
| suitable for series installation | false |
| designed as isolating transformer | false |
| designed as compensator transformer | false |
| suitable for circuit-board mounting | false |
| Insulation Material Class acc. to IEC 85 | H |
| relative short-circuit voltage | 3.76 percent |
