3NP5460-0HA13 - SW DISC 3NP 630A FLAT TRML SZ3 EFM
by Siemens
Original price
$1,707.48
-
Original price
$1,707.48
Original price
$1,707.48
$1,707.48
-
$1,707.48
Current price
$1,707.48

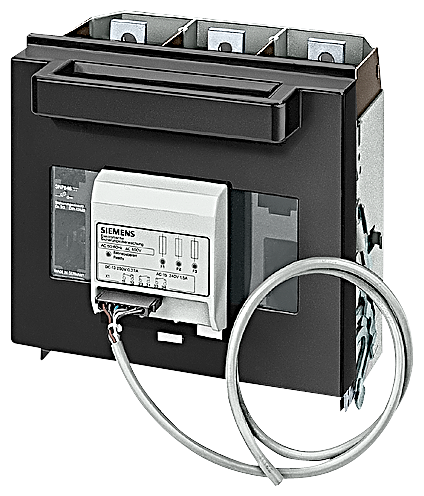

SIEMENS LOW VOLTAGE FUSE SWITCH DISCONNECTOR 3NP COMPARTMENTALIZED WITH HIGH SPEED CLOSING FOR FLOOR MOUNTING. 630A 3-POLE SWITCH WITH FLAT TERMINAL CONNECTOR AND ELECTRONIC FUSE MONITORING (SELF-POWERED). SUITS NH FUSES SIZE 3. AUXILIARY SWITCHES (1NO / 1NC) AT SWITCH AND (2NO / 1NC) AT CIRCUIT BREAKER.
| Item | Value |
|---|---|
| Cable entry | Other |
| Country of Origin | DE |
| Number of poles | 3 |
| Motor drive optional | false |
| With error protection | true |
| Suitable for fuses | NH2, NH3 |
| Motor drive integrated | false |
| Version as main switch | false |
| Version as safety switch | true |
| Equipped with connectors | false |
| Rated permanent current Iu | 630 A |
| Suitable for ground mounting | true |
| Suitable for busbar mounting | false |
| Type of control element | Cover grip |
| Position control element | Front side |
| Max. rated operation voltage Ue AC | 690 V |
| Suitable for front mounting 4-hole | false |
| Degree of protection (IP), front side | IP00 |
| Version as emergency stop installation | false |
| Type of electrical connection of main circuit | Screw connection |
