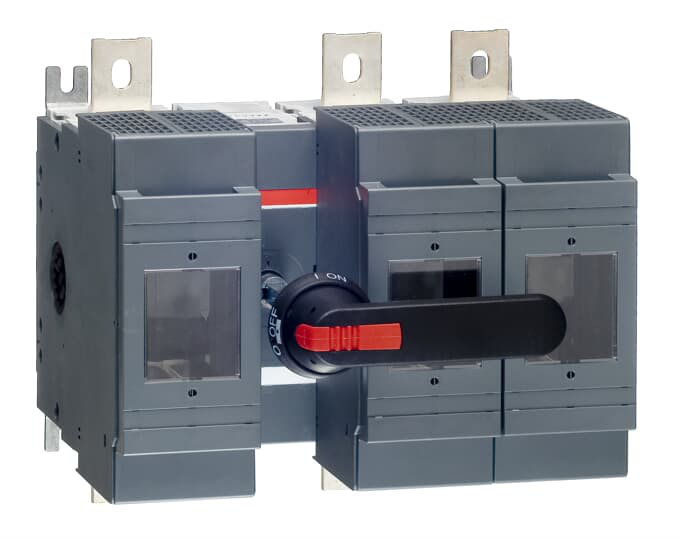

1SCA022825R3810 - OS630D12P SWITCH FUSE

1SCA022825R3810 - OS630D12P SWITCH FUSE

by ABB
$1,282.91 - $1,282.91
$1,282.91
$1,282.91 - $1,282.91
$1,282.91

Switch Fuses,Front Operated,3-pole,12 (Between the Poles),DIN,3,Handle and shaft included,



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
REACH Declaration 1SCC011021D0201
RoHS Information 1SCC011020D0201

Ordering
Item Value
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland (FI)

Dimensions
Item Value
Product Net Width 341 mm
Product Net Height 306 mm
Product Net Depth / Length 233 mm
Product Net Weight 14.89 kg32.83 lb

Technical
Item Value
Rated Operational Current AC-21A (Ie) (500 V) 630 A(690 V) 630 A
Rated Operational Current AC-22A (Ie) (380 ... 415 V) 630 A(500 V) 630 A(690 V) 630 A
Rated Operational Current AC-23A (Ie) (380 ... 415 V) 630 A(500 V) 630 A(690 V) 630 A
Rated Operational Power AC-23A (Pe) (220 ... 240 V) 200 kW(400 V) 355 kW(415 V) 355 kW(500 V) 450 kW(690 V) 630 kW
Conventional Free-air Thermal Current (Ith) Θ = 40 °C 630 A
Conventional Thermal Current (Ithe) Fully Enclosed 570 A
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 18 kiloampere rms
Rated Conditional Short-Circuit Current (Inc) (690 V) 80 kA
Power Loss at Rated Operating Conditions per Pole 60 W
Pollution Degree 3
Handle Type Pistol handle and shaft included
Switches Operating Mechanism 12 (Between the Poles)
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Fuse Size NH3
Fuse System DIN
Operating Mode Front Operated
Standards IEC 60947-3
Mounting Type Base mounting
Number of Poles 3
Terminal Type Lug terminals
Terminal Width 39 mm
Tightening Torque 50 ... 75 N·m
Rated Current (In) Main Circuit 630 A

Technical UL/CSA
Item Value
Tightening Torque 50 ... 75 N·m

Environmental
Item Value
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Classifications
Item Value
Object Classification Code Q
ETIM 9 EC001040 - Fuse switch disconnector
eClass V11.1 : 27371401
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland) 3661518
E-Number (Sweden) 3172095
