3SE5232-0RV40 - INTERLOCK SW, TOP&SIDE ENTRY, 1NO+1NC
by Siemens
Original price
$44.44
-
Original price
$44.44
Original price
$44.44
$44.44
-
$44.44
Current price
$44.44

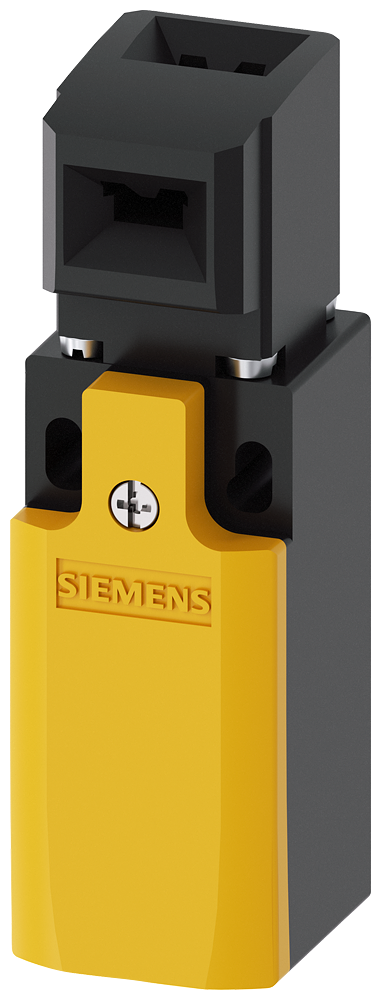

Safety position switch with separate actuator plastic enclosure, 31 mm device connection 1x (m20x 1.5) slow-action contacts 1 nc/1 no 5 directions of approach the matching separate actuator 3SE5000-0av0./-0aw. must be ordered separately
| Item | Value |
|---|---|
| Width sensor | 31 mm |
| Country of Origin | DE |
| Forced opening | true |
| Coating housing | Other |
| Height of sensor | 33 mm |
| Length of sensor | 104 mm |
| Type of interface | None |
| Material housing | Plastic |
| With status indication | false |
| Degree of protection (IP) | IP65 |
| Degree of protection (NEMA) | 12 |
| Construction type housing | Cuboid |
| Suitable for safety functions | true |
| Number of safety auxiliary contacts | 1 |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Number of contacts as change-over contact | 0 |
| Rated operation current Ie at AC-15, 24 V | 6 A |
| Rated operation current Ie at DC-13, 24 V | 3 A |
| Type of switching contact | Slow-action switch |
| Number of contacts as normally open contact | 1 |
| Ambient temperature during operating | -25 °C |
| Number of contacts as normally closed contact | 1 |
| Type of interface for safety communication | None |
| Rated operation current Ie at DC-13, 125 V | 0.55 A |
| Type of electric connection | Cable entry metrical |
