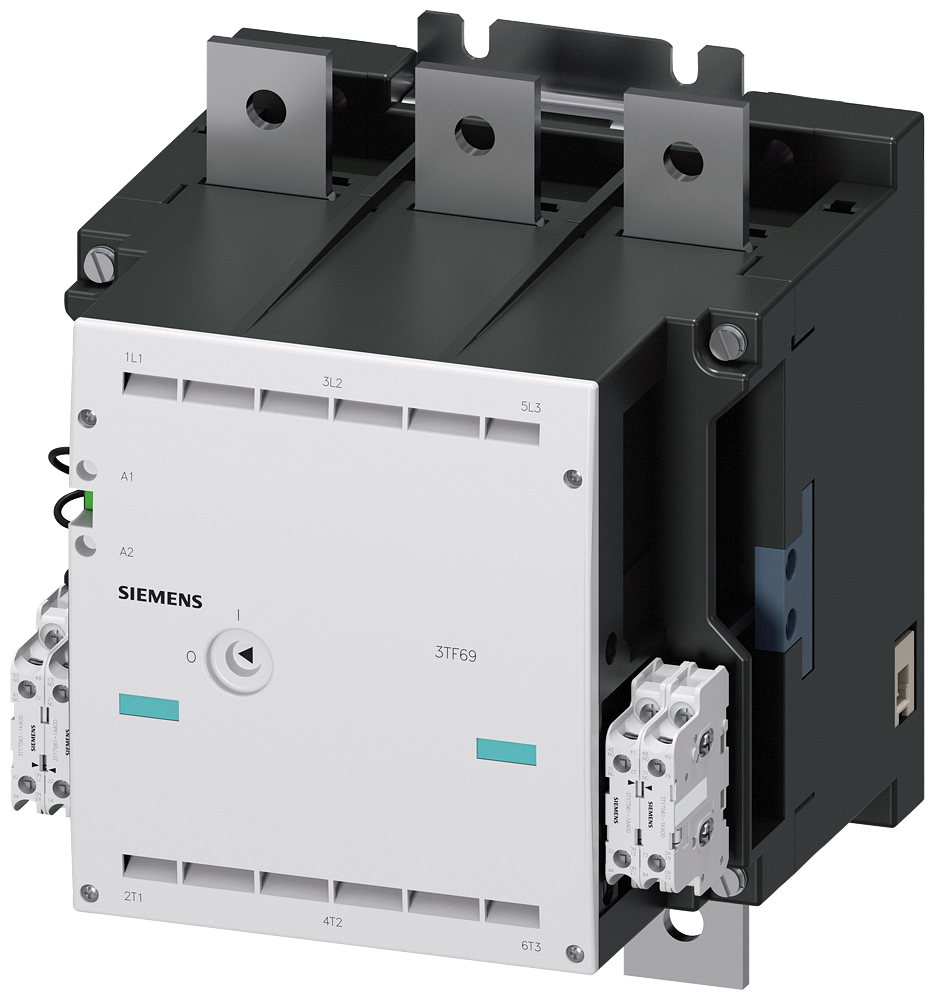

3TF6944-0CM7 - CONTACTOR VAC S14 910A 200-240VAC 3P BAR
by Siemens
Original price
$4,033.94
-
Original price
$4,033.94
Original price
$4,033.94
$4,033.94
-
$4,033.94
Current price
$4,033.94
Contactor,IEC,Sirius Vacuum,3,Non-Reversing 200-240 50/60 Hz AC Coil Frame Size S14,820A Panel Mount 4NO <(>&<)> 4NC Auxiliaries Varister Suppression Lugs (Not Included) Terminals Main Conducting Path UL File E31519 in Vol.1 Sec. 65
| Item | Value |
|---|---|
| Modular version | true |
| Country of Origin | TR |
| Voltage type for actuating | AC |
| Rated operation power NEMA | 514.849125 kW |
| Rated operation power at AC-3, 400 V | 450 kW |
| Rated operation current Ie at AC-1, 400 V | 910 A |
| Rated operation current Ie at AC-3, 400 V | 820 A |
| Rated operation current Ie at AC-4, 400 V | 690 A |
| Rated control supply voltage Us at AC 50HZ | 200 V |
| Rated control supply voltage Us at AC 60HZ | 200 V |
| Number of main contacts as normally open contact | 3 |
| Number of normally closed contacts as main contact | 0 |
| Number of auxiliary contacts as normally open contact | 4 |
| Number of auxiliary contacts as normally closed contact | 4 |
| Type of electrical connection of main circuit | Rail connection |
