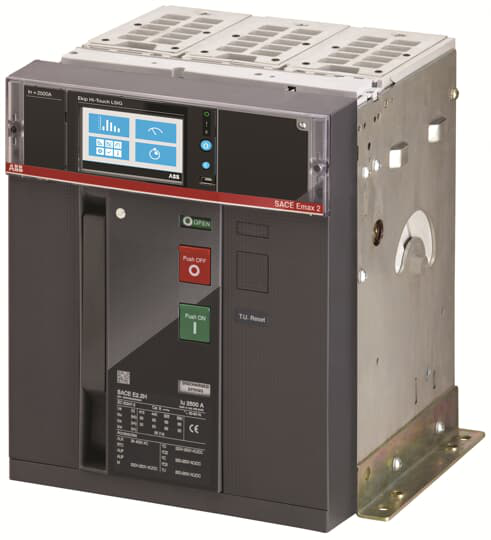

1SDA070969R1 - E2.2S 1250 Ekip Hi-Touch LSIG 3p F HR
by ABB
Original price
$7,192.80
-
Original price
$7,192.80
Original price
$7,192.80
$7,192.80
-
$7,192.80
Current price
$7,192.80
C.BREAKER SACE EMAX2 E2.2S 1250 FIXED THREE-POLE WITH TERMINALS REAR HORIZONTAL AND SOLID-STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 1250 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Item | Value |
---|---|
ABB EcoSolutions | Yes |
Item | Value |
---|---|
Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 79.1 % |
Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
End of Life Instructions | 9AKK108468A2361 |
Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
Item | Value |
---|---|
Environmental Product Declaration - EPD | 9AKK108468A1902 9AKK108468A1909 |
Item | Value |
---|---|
Environmental Information | 9AKK10103A1038 9AKK108467A6707 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
SCIP | 93951f71-79f6-4cd1-80e4-c7909f9baa54 Italy (IT) |
Simplified SCIP | bffca4b8-cc43-4760-9490-599d85598d59 Poland (PL)e66feb15-45a7-402a-885b-567ad390a6e3 Poland (PL)16400ca4-5e80-4420-982b-8573796a6059 Hungary (HU)d01d409d-835b-4eba-81f3-1a206a2f1b24 Belgium (BE)59f22650-15c6-4cf3-81e8-936fb8c114dc Spain (ES)2392a3fb-3f44-46f4-9dbe-35b3f18fd0a3 Czech Republic (CZ)d856b782-40d9-4d5f-9eaf-6ac5d42fe19e Poland (PL)283339fe-92aa-4860-af51-cda42672e306 Norway (NO)6fd0a2c2-40a6-4c1b-8891-da5cc7f79bf9 Hungary (HU)f434cbad-8c1f-492e-9765-c8f8167927d4 Estonia (EE)86d5c231-42f5-446b-a34e-43304d107673 Denmark (DK)53abf30e-bf07-4085-8cce-5c8cd62100af Germany (DE)dbf528bf-9554-4f30-b26a-02c4a26f0b00 Germany (DE)272adc79-6785-401e-80b5-e2b2e3cbcbcd Germany (DE)0fc4f35f-d13c-4c03-8f09-abc9a3437745 Germany (DE)6ac32107-d851-47e7-9702-8bef3e0e530d Sweden (SE)b7da3638-55c2-402e-8420-ae7abe843e93 Belgium (BE)9396dbfd-071e-4f90-b7df-2f924996de4f Netherlands (NL)80792894-4f83-4c20-9dab-294c74097336 France (FR)0e3108de-20ee-4ddb-9c12-180961e99ce3 Greece (GR)c028809b-13c3-4445-9c69-71828cb7c52f Finland (FI)a1694668-4cc1-476e-99ef-3e2f5b40eebb Bulgaria (BG)5e88e40e-524e-48d0-9f09-e7cf486a62a1 Croatia (HR)c50f5f90-efff-420c-bb42-c569d4703136 France (FR)3d9c4630-bd46-4103-bfa8-16d8631b5e9f Portugal (PT)dcc2e542-6ea2-40ce-a663-fd493265c721 Sweden (SE) |
Item | Value |
---|---|
Order Code US and Canada | Z2SREHBK200A000000XX |
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 276 mm |
Product Net Height | 371 mm |
Product Net Depth / Length | 270 mm |
Product Net Weight | 41 kg |
Item | Value |
---|---|
Current Type | AC |
Electrical Durability | Ue =< 440 V 15000 cycleUe = 500 ... 690 V 15000 cycle30 cycles per hour |
Mechanical Durability | 25000 cycle60 cycles per hour |
Number of Poles | 3 |
Power Loss | 83 W |
Product Main Type | SACE Emax 2 |
Product Name | Air Circuit Breaker |
Product Type | Air Circuit Breaker |
Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
Rated Current (In) | 1250 A |
Rated Voltage (Ur) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
Rated Insulation Voltage (Ui) | AC 1000 V |
Rated Operational Voltage | 690 V AC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 85 kA(230 V AC) 85 kA(380 V AC) 85 kA(400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(660 V AC) 66 kA(690 V AC) 66 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kAfor 3 s 50 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 85 kA(415 V AC) 85 kA(440 V AC) 85 kA(500 V AC) 66 kA(525 V AC) 66 kA(690 V AC) 66 kA |
Rated Uninterrupted Current (Iu) | 1250 A |
Recommended Screw Driver | Main Circuit M12 |
Release | Ekip Hi-Touch LSIG |
Release Type | EL |
Short-Circuit Performance Level | S |
Standards | IEC |
Sub-type | E2.2 |
Terminal Connection Type | Rear flat Horizontal |
Terminal Type | Bolt |
Tightening Torque | 70 N·m |
Version | F |
CAD Dimensional Drawing | 1SDH001252R0083 |
Item | Value |
---|---|
ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
IDEA Granular Category Code (IGCC) | 4926 >> Air circuit breakers |
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
eClass | V11.1 : 27370409 |
