1SCA112372R1001 - OT125FL3 SWITCH-DISCONNECTOR

1SCA112372R1001 - OT125FL3 SWITCH-DISCONNECTOR

by ABB
$143.11 - $143.11
$143.11
$143.11 - $143.11
$143.11

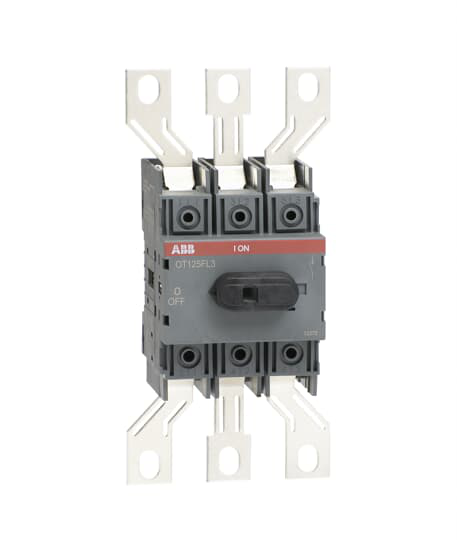

3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector with extended bus bar terminals on both sides, handle and shaft are not included



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
Environmental Information 1SCC301264D0201
REACH Declaration 1SCC011021D0201
RoHS Information 1SCC011020D0201

Ordering
Item Value
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland (FI)

Dimensions
Item Value
Product Net Width 90 mm
Product Net Height 181.5 mm
Product Net Depth / Length 74 mm
Product Net Weight 0.43 kg

Technical
Item Value
Rated Operational Current AC-21A (Ie) (380 ... 415 V) 125 A(500 V) 125 A(690 V) 125 A
Rated Operational Current AC-22A (Ie) (380 ... 415 V) 125 A(500 V) 125 A(690 V) 125 A
Rated Operational Current AC-23A (Ie) (380 ... 415 V) 90 A(500 V) 70 A(690 V) 50 A
Rated Operational Power AC-23A (Pe) (220 ... 240 V) 22 kW(400 ... 415 V) 45 kW(500 V) 45 kW(690 V) 45 kW
Conventional Free-air Thermal Current (Ith) Θ = 40 °C 125 A
Conventional Thermal Current (Ithe) Fully Enclosed 125 A
Rated Impulse Withstand Voltage (Uimp) 8 kV
Rated Insulation Voltage (Ui) acc. to IEC/EN 60664-1 750 V
Rated Operational Voltage Main Circuit 750 V
Rated Short-Circuit Making Capacity (Icm) (690 V) 3.6 kA
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 2.5 kA
Power Loss at Rated Operating Conditions per Pole 6.3 W
Pollution Degree 3
Handle Type KnobHandle and shaft not included
Switches Operating Mechanism Mechanism on Top of the Switch
Distance Between Phases Standard
Position of Line Terminals Top In - Bottom OutBottom In - Top Out
Operating Mode Front operated
Standards IEC 60947-3
Special Functions No
Mounting Type Base mounting
Number of Poles 3
Cable Cross-Section Cu 10 ... 70 mm²
Degree of Protection Front IP20
Terminal Type Screw Terminals
Tightening Torque acc. IEC 60947-1 6 N·m
Mechanical Durability 20000
Lock Type No

Technical UL/CSA
Item Value
Tightening Torque acc. IEC 60947-1 6 N·m

Environmental
Item Value
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Environmental Information 1SCC301264D0201

Classifications
Item Value
Object Classification Code Q
ETIM 9 EC000216 - Switch disconnector (low voltage)
eClass V11.1 : 27371403
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland) 3600159
