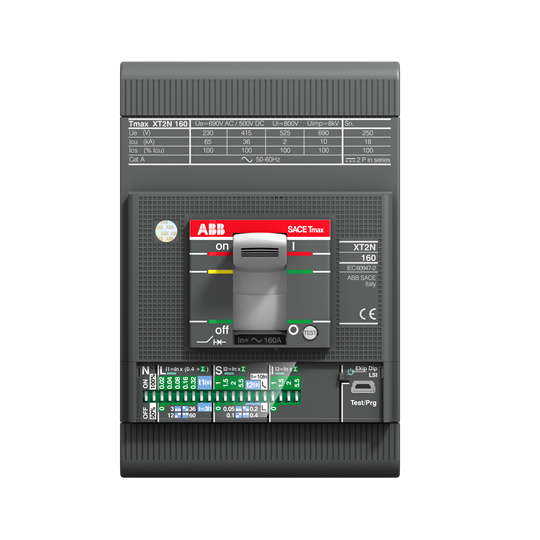

1SDA067058R1 - XT2N 160 Ekip LS/I In=160A 3p F F
by ABB
Original price
$326.28
-
Original price
$326.28
Original price
$326.28
$326.28
-
$326.28
Current price
$326.28
C.BREAKER TMAX XT2N 160 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LS/I R 160 A
| Item | Value |
|---|---|
| ABB EcoSolutions | Yes |
| Item | Value |
|---|---|
| Circular Design Principles Recyclability Rate | Design for Closing Resource Loops - Standard EN45555 - 58.1 % |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| End of Life Instructions | 9AKK108468A2349 |
| Group Waste to Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Toxic Substances Control Act - TSCA | 9AKK108467A8326 |
| Item | Value |
|---|---|
| Environmental Product Declaration - EPD | 9AKK108468A1897 |
| Item | Value |
|---|---|
| Environmental Information | 9AKK107991A8215 9AKK108467A6707 |
| REACH Declaration | 9AKK108466A1425 |
| RoHS Information | 9AKK108466A1424 |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | b90612d8-2735-48c0-a56d-dc45be673814 Italy (IT) |
| Simplified SCIP | f169be50-7e04-4524-ab8e-7ce1763b47b9 France (FR)ad6d175f-75d5-4039-b30b-6180d39af189 Norway (NO)32f4ada9-55a6-4949-bb23-bbaf1b1ddd00 Finland (FI)639d2250-1084-4545-9b47-11f4136ba1de Netherlands (NL)5d932a2c-9f30-4e07-af0d-e9c67e6fbae8 Germany (DE)da1187e6-35c6-4fcf-98f5-45b8b5524dee Denmark (DK)d52e6c34-7d2f-417c-adcd-298010509da7 Germany (DE)fef67e1e-b863-4d26-8eda-30b19f23c531 Netherlands (NL)eacfccbb-a82d-4fac-bd44-f90b918e6b2f Spain (ES)378fd1f0-ddca-4b7b-812e-066cfa35bc3b Netherlands (NL)75555083-4fe1-495b-aa08-52ad3b730e2f Germany (DE)2a8dc798-9ad8-4510-8e26-c7eb48a964e9 Poland (PL)b08cf1d0-f1be-4019-956a-2f6676f2f0bb Croatia (HR)7aef0e65-8b0f-440a-92b4-e47d31bdb3df Czech Republic (CZ)0b7af615-fe02-435b-b2e5-ac5781d752ab Poland (PL)b9ee9955-ee43-4015-99a5-02af016b3924 Netherlands (NL)c0de57ed-ce97-45a9-9eb5-9e93d59bf892 Netherlands (NL)781f0e8d-1411-44b0-a834-5ebc37831338 Estonia (EE)8296011d-d5f0-4f2d-8fbc-93eb75957b38 Greece (GR)b0bc9672-0156-4859-94ec-587cd5d95f50 Portugal (PT)3dc9bc4b-1e87-4ae9-967b-958d8fae4481 Bulgaria (BG)48b1023d-77c4-4afd-a4fc-7e4e3da8817d Sweden (SE)7b86cf23-28b1-4ecc-af6e-5fd68920903c Poland (PL)38658003-4bce-41db-918e-b155d51dd413 Sweden (SE)bdc04d42-017e-4f67-871a-3cadf5ac1440 Germany (DE)44da1b16-8c2b-4c4e-a9c1-9553a48028de France (FR) |
| Item | Value |
|---|---|
| Order Code US and Canada | XT2NE3160EFF000XXX |
| E-Number (Finland) | 3638188 |
| E-Number (Sweden) | 3182027 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Item | Value |
|---|---|
| Product Net Width | 90 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 1.4 kg |
| Item | Value |
|---|---|
| Brand / Label | ABB |
| Circuit Breaker Type to be Associated | Power Distribution |
| Connecting Capacity Main Circuit | Busbar 32.5..100 mm² |
| Current Type | AC |
| Electrical Durability | 120 cycles per hour8000 cycle |
| Mechanical Durability | 240 cycles per hour25000 cycle |
| Number of Poles | 3 |
| Opening Time | CB with SOR 15 msCB with UVR 15 ms |
| Order Multiple | 1 piece |
| Power Loss | at Rated Operating Conditions per Pole 10.8 W |
| Product Main Type | SACE Tmax XT |
| Product Name | Moulded Case Circuit Breaker |
| Product Type | Automatic Circuit Breaker |
| Rated Current (In) | 160 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Voltage (Ur) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 65 kA(230 V AC) 65 kA(240 V AC) 65 kA(380 V AC) 36 kA(415 V AC) 36 kA(440 V AC) 36 kA(500 V AC) 30 kA(525 V AC) 20 kA(690 V AC) 10 kA |
| Rated Uninterrupted Current (Iu) | 160 A |
| Recommended Screw Driver | Main Circuit M6 |
| Release | Ekip LS/I |
| Release Type | EL |
| RoHS Date | NA |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | XT2 |
| Terminal Connection Type | Front |
| Terminal Type | Bolt |
| Tightening Torque | 6 N·m |
| Version | F |
| CAD Dimensional Drawing | 1SDH002230A1001 |
| Item | Value |
|---|---|
| ETIM 9 | EC000228 - Power circuit-breaker for trafo/generator/installation protection |
| IDEA Granular Category Code (IGCC) | 4932 >> 3 Pole Non-Interchangeable Trip Electronic Circuit Breakers |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass | V11.1 : 27370409 |
