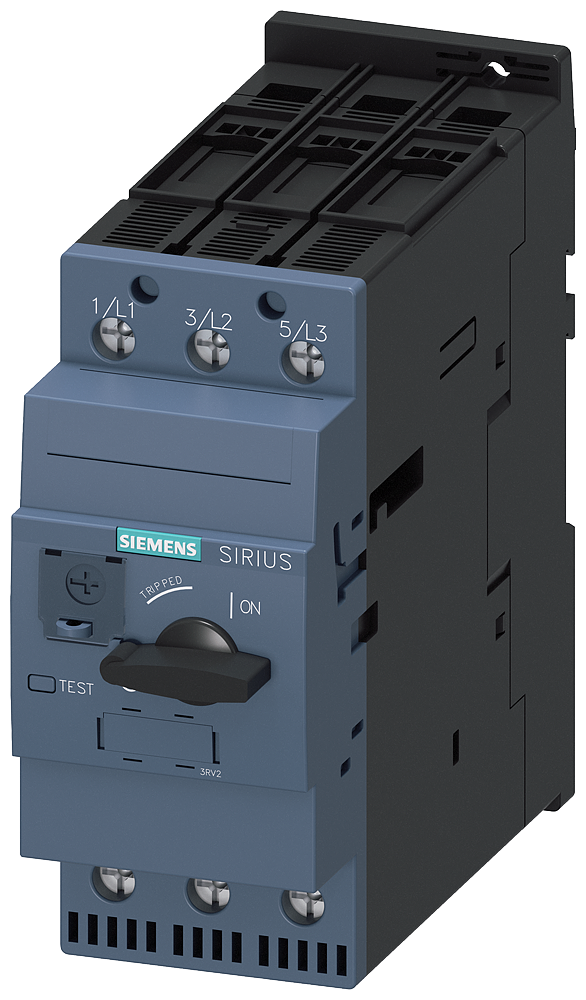

3RV2032-4KA10 - CIRCUIT BREAKER. SCREW-TYPE. 73 A
by Siemens
Original price
$348.41
-
Original price
$348.41
Original price
$348.41
$348.41
-
$348.41
Current price
$348.41
Circuit breaker. size s2. for motor protection. class 10. a-release 62...73a. n-release 949a. screw terminal. increased switching capacity
Item | Value |
---|---|
Pole number | 3 |
Country of Origin | DE |
Manner of using | Toggle |
Protection type IP | IP20 |
Release system | magnetic |
Sensitive to phase failure | true |
Connection type | Screw connection |
description of product type | 3RV2 |
Rated permanent current Iu | 73 ampere |
max. rated operating voltage | 690 volt |
min. rated operating voltage | 690 volt |
Integrated auxiliary switch present | false |
Integrated undervoltage tripper present | false |
suitable for mounting onto standard rails | false |
Rated operating power with AC-3, 230 V | 22 kilowatt |
Rated operating power with AC-3, 400 V | 37 kilowatt |
Power loss per pole, current-dependent [PlIp] | 9.8 watt |
Lowest value of setting range for overload tripper | 62 ampere |
Greatest value of overload release adjustment range | 73 ampere |
Rated current [In] for the power loss specification | 73 ampere |
rated service short-circuit breaking capacity Ics at 400 V, 50 Hz | 100000 ampere |
