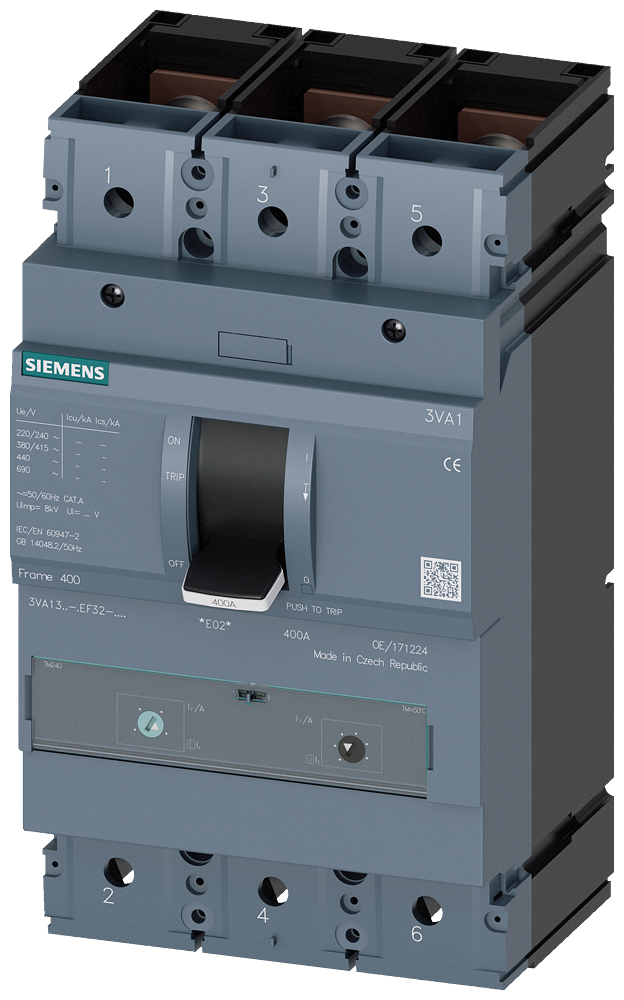

3VA1340-6EF32-0AA0 - BRKR 3VA13 3P 400A 85KA ATAM NUT

3VA1340-6EF32-0AA0 - BRKR 3VA13 3P 400A 85KA ATAM NUT

by Siemens
$949.16 - $949.16
$949.16
$949.16 - $949.16
$949.16

SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA13 FRAME WITH HIGH (CLASS H) BREAKING CAPACITY. 400A 3-POLE Icu: (6KAIC AT 600V) (85KAIC AT 415V). TM240 TRIP UNIT WITH ADJUSTABLE Ir ADJUSTABLE Ii. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER. DIMENSIONS (W x H x D) IN: 5.4 x 9.8 x 5.4.



Specifications
Item Value
Country of Origin CZ
Number of poles 3
Rated voltage 690 V
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 400 A
With switched-off indicator false
Type of control element Rocker lever
Overload release current setting 280 A
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional false
Suitable for DIN rail (top hat rail) mounting false
Number of auxiliary contacts as change-over contact 0
Adjustment range undelayed short-circuit release 2000 A
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Position of connection for main current circuit Front side
Device construction Built-in device fixed built-in technique
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 70 kA
Type of electrical connection of main circuit Screw connection
