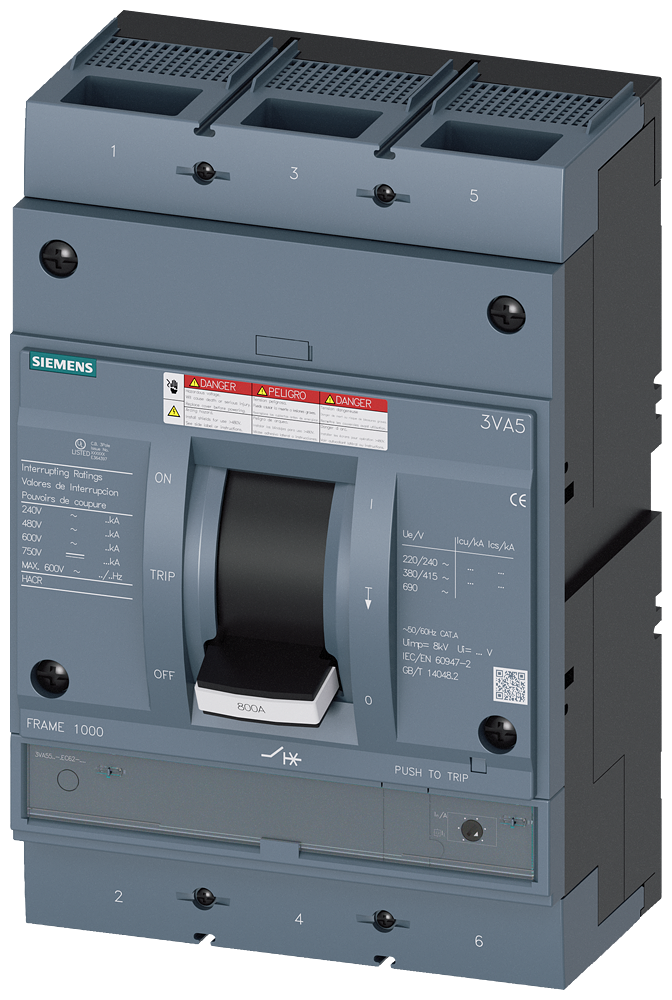

3VA5560-5EC62-0AA0 - BRKR 3VA55 2(3)P 600A 35KA FTAM NUT
by Siemens
Original price
$1,490.25
-
Original price
$1,490.25
Original price
$1,490.25
$1,490.25
-
$1,490.25
Current price
$1,490.25
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA55 FRAME WITH MEDIUM LOW (CLASS M) BREAKING CAPACITY. 600A 2(3)-POLE (18KAIC AT 600V) (35KAIC AT 480V). TM230 TRIP UNIT WITH FIXED Ir ADJUSTABLE Ii. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER.. DIMENSIONS (W x H x D) IN: 8.3 x 12.5 x 5.8.
Item | Value |
---|---|
Number of poles | 2 |
Country of Origin | CZ |
Rated voltage | 690 V |
Motor drive integrated | false |
Degree of protection (IP) | IP40 |
Rated permanent current Iu | 600 A |
With switched-off indicator | false |
Type of control element | Rocker lever |
Overload release current setting | 600 A |
Integrated earth fault protection | false |
Complete device with protection unit | true |
With integrated under voltage release | false |
DIN rail (top hat rail) mounting optional | true |
Suitable for DIN rail (top hat rail) mounting | true |
Number of auxiliary contacts as change-over contact | 0 |
Adjustment range undelayed short-circuit release | 3000 A |
Number of auxiliary contacts as normally open contact | 0 |
Number of auxiliary contacts as normally closed contact | 0 |
Position of connection for main current circuit | Front side |
Device construction | Built-in device fixed built-in technique |
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 55 kA |
