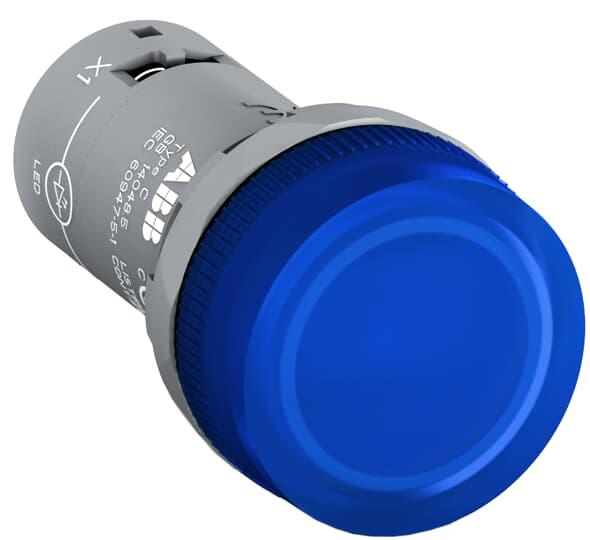

1SFA619402R1004 - CL-100L Pilot Light

1SFA619402R1004 - CL-100L Pilot Light

by ABB
$32.53 - $32.53
$32.53
$32.53 - $32.53
$32.53

The CL-100L Pilot Light is: Compact - Pilot Light - Pilot light head - Blue - Illuminated - 240 V



Ordering
Item Value
Minimum Order Quantity 10 piece
Customs Tariff Number 8536619090

Dimensions
Item Value
Product Net Width 0.03 m
Product Net Height 0.03 m
Product Net Depth / Length 0.055 m
Product Net Weight 0.018 kg

Technical
Item Value
Ambient Air Temperature Operation -25 ... +70 °CStorage -40 ... +85 °C
Color Blue
Actuator Type Pilot light head
Bezel Material n/a
Illumination Illuminated
Lamp Type Ba9s
Degree of Protection Front IP66Front IP67Front IP69KTerminals IP20
Enclosure Type NEMA Type1Type12Type13Type3RType4Type4X
Pollution Degree 3
Rated Frequency (f) Supply Circuit 60 50 Hz
Rated Operational Voltage Maximum 240 V
Rated Operational Current DC-13 (Ie) (24 V) 0.3 A(125 V) 0.2 A
Rated Operational Current AC-15 (Ie) (24 / 127 V) 1.5 A(220 / 240 V) 1 A
Connecting Capacity Flexible with Ferrule 1 x 0.75...2.5 mm²Flexible with Ferrule 2 x 0.75...2.5 mm²Flexible with Insulated Ferrule 1 x 0.75...2.5 mm²Flexible with Insulated Ferrule 2 x 0.75...2.5 mm²Flexible 1 x 0.75 ... 2.5 mm²Flexible 2 x 0.75 ... 2.5 mm²Solid 1 x 0.75...2.5 mm²Solid 2 x 0.75...2.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.9 N·m
Wire Stripping Length 8 mm
Suitable For Bulb 3W max.
Suitable for Product Class Pilot Devices

Technical UL/CSA
Item Value
Connecting Capacity UL/CSA 1x 18...14 AWG2x 18...14 AWG

Environmental
Item Value
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
RoHS Date 0626 5
RoHS Information 2CMT2015-005451
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B Business To Business

Classifications
Item Value
Object Classification Code P
eClass V11.0 : 27371223
IDEA Granular Category Code (IGCC) 4766 >> Indicator or pilot lights
E-Number (Finland) 2314757
E-Number (Norway) 4372564
E-Number (Sweden) 3711206
