1SCA116721R1001 - OS32GB02P SWITCH FUSE

1SCA116721R1001 - OS32GB02P SWITCH FUSE

by ABB
$232.54 - $232.54
$232.54
$232.54 - $232.54
$232.54

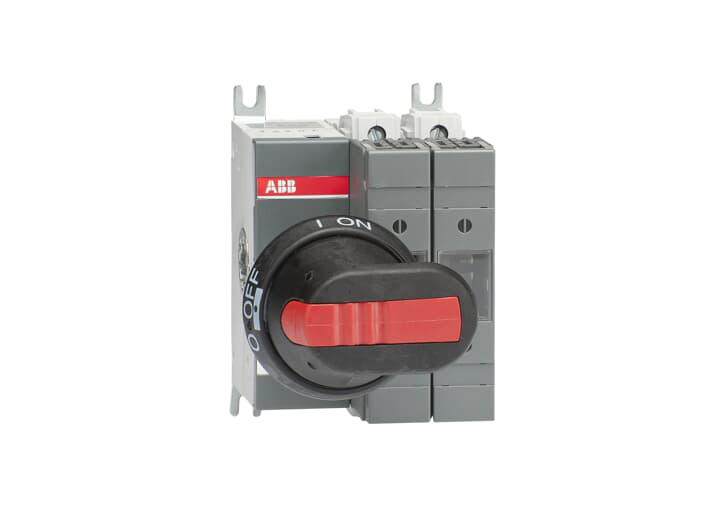

Switch Fuses,Front Operated,2-pole,02 (Left Side),British Standard,A2-A3,Handle and shaft included,



Circular Value
Item Value
Conflict Minerals Reporting Template (CMRT) 9AKK108467A5658
REACH Declaration 1SCC011021D0201
RoHS Information 1SCC011020D0201

Ordering
Item Value
Minimum Order Quantity 1 piece
Customs Tariff Number 85365080
Country of Origin Finland (FI)

Dimensions
Item Value
Product Net Width 88 mm
Product Net Height 112 mm
Product Net Depth / Length 121 mm
Product Net Weight 1 kg

Technical
Item Value
Rated Operational Current AC-21A (Ie) (500 V) 32 A(690 V) 32 A
Rated Operational Current AC-22A (Ie) (500 V) 32 A(690 V) 32 A
Rated Operational Current AC-23A (Ie) (500 V) 32 A(690 V) 32 A
Rated Operational Power AC-23A (Pe) (220 ... 240 V) 7.5 kW(400 V) 15 kW(415 V) 15 kW(500 V) 18.5 kW(690 V) 22 kW
Conventional Free-air Thermal Current (Ith) Θ = 40 °C 32 A
Conventional Thermal Current (Ithe) Fully Enclosed 32 A
Rated Impulse Withstand Voltage (Uimp) 12 kV
Rated Insulation Voltage (Ui) 1000 V
Rated Operational Voltage Main Circuit 690 V AC
Rated Short-time Withstand Current Low Voltage (Icw) for 1 s 2.5 kiloampere rms
Rated Conditional Short-Circuit Current (Inc) (690 V) 80 kA
Power Loss at Rated Operating Conditions per Pole 7.5 W
Pollution Degree 3
Handle Type Pistol handle and shaft included
Switches Operating Mechanism 02 (Left Side)
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Fuse Size A2-A3
Fuse System British Standard
Operating Mode Front Operated
Standards IEC 60947-3
Mounting Type Base mounting
Number of Poles 2
Cable Cross-Section 2.5 ... 25 mm²
Terminal Type Screw Terminals
Tightening Torque 3 N·m4 N·m
Rated Current (In) Main Circuit 32 A

Technical UL/CSA
Item Value
Tightening Torque 3 N·m4 N·m

Environmental
Item Value
RoHS Status Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Classifications
Item Value
Object Classification Code Q
ETIM 9 EC001040 - Fuse switch disconnector
eClass V11.1 : 27371401
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)
