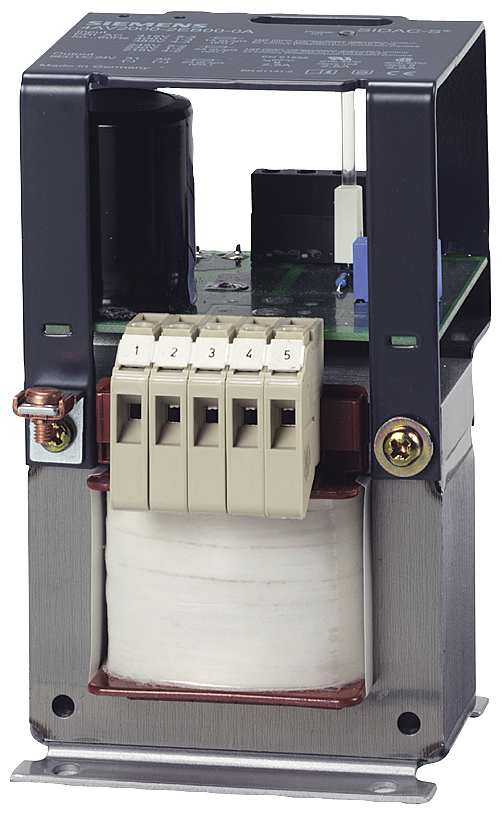

4AV2200-2EB00-0B - PWR SPLY, 1PH, PRI 400-230+/-15V, SEC 24V

4AV2200-2EB00-0B - PWR SPLY, 1PH, PRI 400-230+/-15V, SEC 24V

by Siemens
$509.14 - $509.14
$509.14
$509.14 - $509.14
$509.14

>SAFETY ISOLATING TRANSFORMER< EN 61558-2-6, EN61131-2 INSTALLATION:MOUNTING RAILS; CONNECTION; TERMINALS:SCREW/TAB /B; W(%):5; IP00; TYPE OF PROTECTION CL.:I; TA/ISOKL:60 GR./SHIELD WNG.:II0 /0; F(HZ):50...60; VECTOR DC):24; ISEC(A DC):5; UPRI(V):400-230+/-15; USEC(V PN(KW):0,12; POWER SUPPLY; PHASES:1;



Specifications
Item Value
Country of Origin CZ
Depth 4.448819 inch
Width 4.133858 inch
Height 6.181102 inch
Short-circuit-proof false
Built-in width 4.133858 inch
Rail mounting possible false
Wall mounting possible false
Degree of protection (IP) IP00
Type of electric connection Other
Voltage type of supply voltage AC
