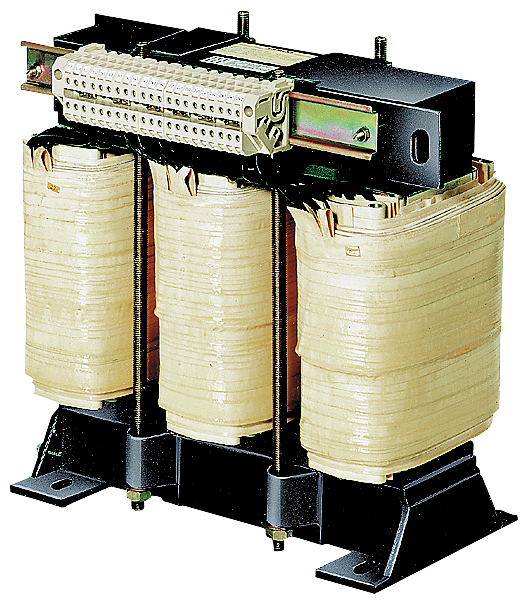

4AU3912-8CC40-0HA0 - XFMR, 12.5KVA, Y500-D289 VP, Y400-D230VS
by Siemens
Original price
$5,732.32
-
Original price
$5,732.32
Original price
$5,732.32
$5,732.32
-
$5,732.32
Current price
$5,732.32
TRANSFORMER SITAS PHASES:3 PN/PN(S6)(KVA):12,5 /49 UPRI(V):Y500-440-380+/-20/D289- 254-220+/-11 USEC(V):Y 400 / D 230 ISEC(A):18-31,3 F(HZ):50...60 VECTOR GR./SHIELD WNG.:IIIIII0 /0 TA/ISOKL:55 /H IP00 TYPE OF TERMINALS:SCREW CONNECTION INSTALLATION:SCREW EN 61558-2-1, -2-2, -2-4 >CONTROL CIRCUIT TRANSFORMER< >ISOLATION TRANSFORMER<
| Item | Value |
|---|---|
| Depth | 262 millimetre |
| Country of Origin | CZ |
| Width | 410 millimetre |
| Height | 370 millimetre |
| Protection type IP | IP00 |
| min. primary voltage7 | 400 volt |
| max. primary voltage 1 | 520 volt |
| max. primary voltage 2 | 500 volt |
| max. primary voltage 3 | 480 volt |
| max. primary voltage 4 | 460 volt |
| max. primary voltage 5 | 440 volt |
| max. primary voltage 6 | 420 volt |
| max. primary voltage 7 | 400 volt |
| max. primary voltage 8 | 380 volt |
| max. primary voltage 9 | 360 volt |
| min. primary voltage 1 | 520 volt |
| min. primary voltage 2 | 500 volt |
| min. primary voltage 3 | 480 volt |
| min. primary voltage 4 | 460 volt |
| min. primary voltage 5 | 440 volt |
| min. primary voltage 6 | 420 volt |
| min. primary voltage 8 | 380 volt |
| min. primary voltage 9 | 360 volt |
| max. primary voltage 10 | 300 volt |
| min. primary voltage 10 | 300 volt |
| max. secondary voltage 1 | 400 volt |
| max. secondary voltage 2 | 230 volt |
| min. secondary voltage 1 | 400 volt |
| min. secondary voltage 2 | 230 volt |
| Rated performance | 12500 volt ampere |
| designed as safety transformer | false |
| designed as isolating transformer | false |
| designed as compensator transformer | false |
| relative short-circuit voltage | 3.1 percent |
| Insulation Material Class acc. to IEC 85 | H |
