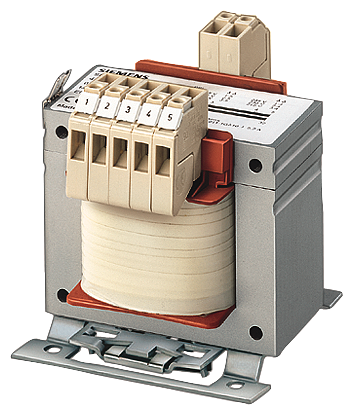

4AM5542-8DD40-0FA0 - 1-PH SITAS-TRANSF.PRI500-208V, SEC 2X115
by Siemens
Original price
$637.17
-
Original price
$637.17
Original price
$637.17
$637.17
-
$637.17
Current price
$637.17
>ISOLATION TRANSFORMER< CIRCUIT TRANSFORMER< 61558-2-1, -2-2, -2-4 >CONTROL INSTALLATION:SCREW; EN CONNECTION; TERMINALS:SCREW/TAB TA/ISOKL:40 /B; IP00; TYPE OF GR./SHIELD WNG.:II0 /0; F(HZ):50...60; VECTOR ISEC(A):3,48-6,96; USEC(V):2X115; 440-415-400-380-230-208; UPRI(V):550-525-500-480-460- PN/PN(S6)(KVA):0,8 /3,4; TRANSFORMER SITAS; PHASES:1;
| Item | Value |
|---|---|
| Country of Origin | CZ |
| Depth | 126 millimetre |
| Width | 152 millimetre |
| Height | 144 millimetre |
| Protection type IP | IP00 |
| min. primary voltage7 | 415 volt |
| max. primary voltage 1 | 550 volt |
| max. primary voltage 2 | 525 volt |
| max. primary voltage 3 | 500 volt |
| max. primary voltage 4 | 480 volt |
| max. primary voltage 5 | 460 volt |
| max. primary voltage 6 | 440 volt |
| max. primary voltage 7 | 415 volt |
| max. primary voltage 8 | 400 volt |
| max. primary voltage 9 | 380 volt |
| min. primary voltage 1 | 550 volt |
| min. primary voltage 2 | 525 volt |
| min. primary voltage 3 | 500 volt |
| min. primary voltage 4 | 480 volt |
| min. primary voltage 5 | 460 volt |
| min. primary voltage 6 | 440 volt |
| min. primary voltage 8 | 400 volt |
| min. primary voltage 9 | 380 volt |
| max. primary voltage 10 | 230 volt |
| min. primary voltage 10 | 230 volt |
| Rated performance | 800 volt ampere |
| max. secondary voltage 1 | 230 volt |
| max. secondary voltage 2 | 115 volt |
| min. secondary voltage 1 | 230 volt |
| min. secondary voltage 2 | 115 volt |
| designed as safety transformer | false |
| suitable for series installation | false |
| designed as isolating transformer | false |
| designed as compensator transformer | false |
| suitable for circuit-board mounting | false |
| Insulation Material Class acc. to IEC 85 | B |
| relative short-circuit voltage | 4.92 percent |
