3SU11320AB603BA0 - ILLUMINATED PUSHBUTTON, MOM, WHT, FLUSH
by Siemens
Original price
$29.82
-
Original price
$29.82
Original price
$29.82
$29.82
-
$29.82
Current price
$29.82

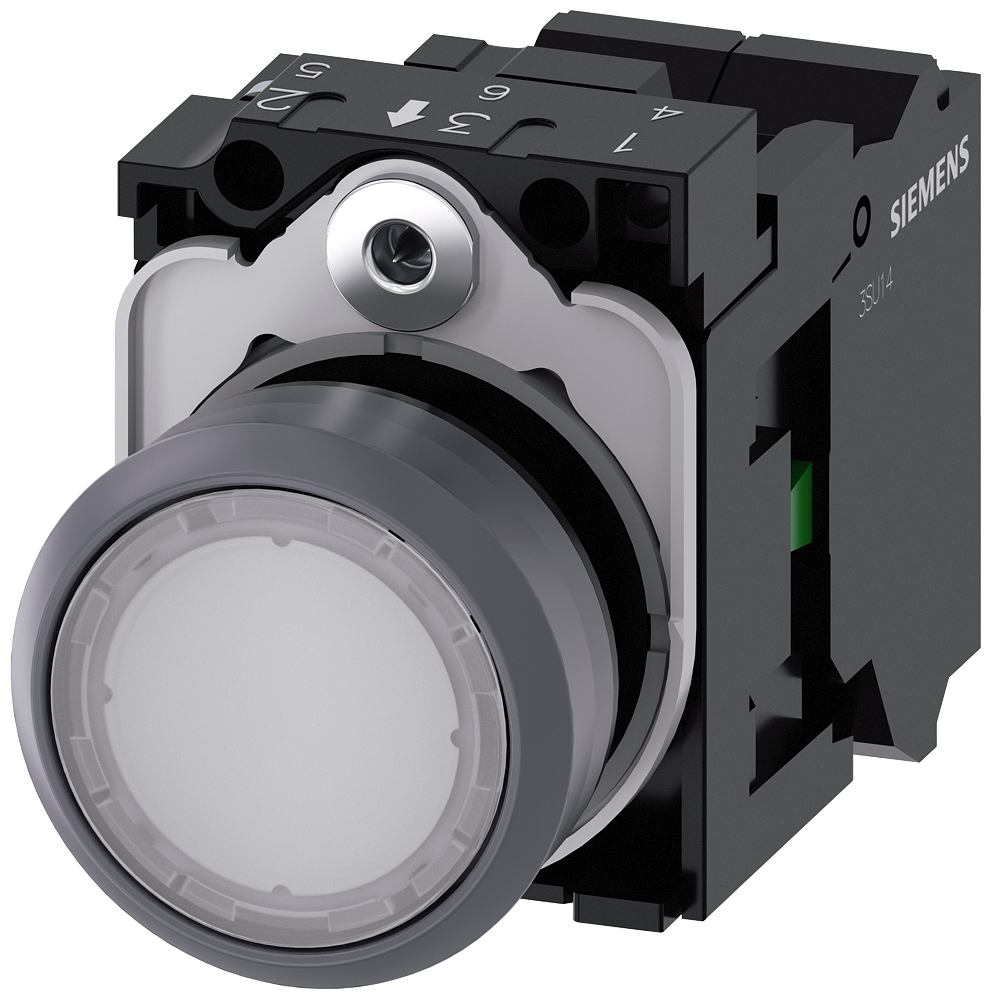

Illuminated pushbutton, 22mm, round, plastic with metal front ring, white, flat button, momentary contact type, with holder, 1NO, led module, with integrated led 24V AC/DC, spring-type terminal
| Item | Value |
|---|---|
| Country of Origin | DE |
| Spring-return | true |
| Colour button | White |
| Type of button | Flat |
| Hole diameter | 22.3 mm |
| Width opening | 29.5 mm |
| With front ring | true |
| Colour front ring | Grey |
| Supply voltage lamp | 24 V |
| Material front ring | Metal |
| Number of command positions | 1 |
| Suitable for illumination | true |
| Degree of protection (NEMA) | Other |
| Switching function latching | false |
| Degree of protection (IP) | IP67/IP69K |
| Number of contacts as change-over contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as normally closed contact | 0 |
| Type of electric connection | Spring clamp connection |
