3SE5242-3QV40 - INTERLOCK SW, TOP&SIDE ENTRY, 1NO+2NC, 2LED
by Siemens
Original price
$72.13
-
Original price
$72.13
Original price
$72.13
$72.13
-
$72.13
Current price
$72.13

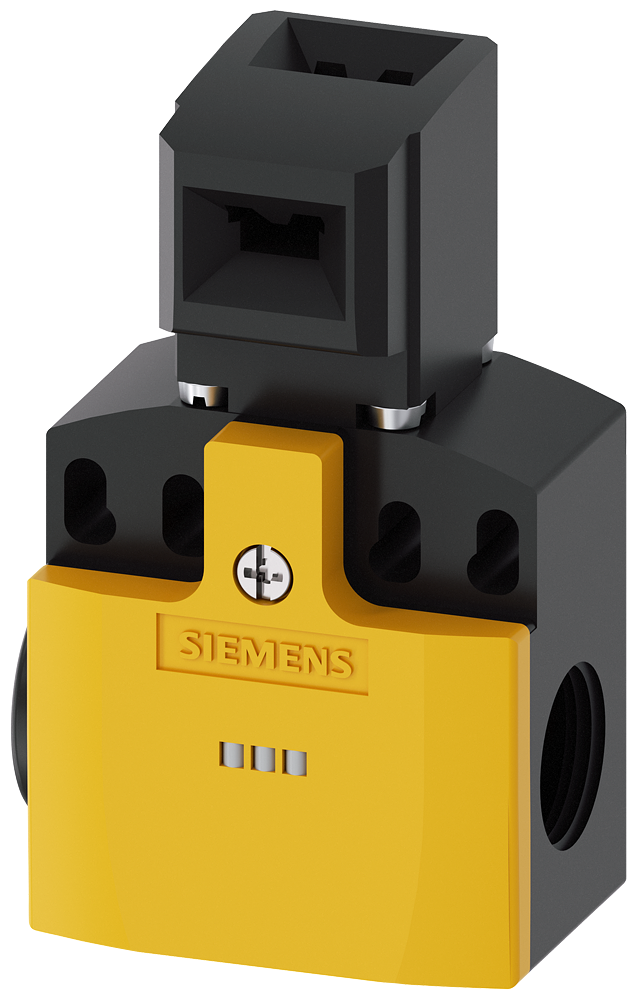

Safety position switch with separate actuator Plastic enclosure, 50 mm Device connection 2x (M20x 1.5) Slow-action contacts 1 NO+2 NC with 2 LEDs yellow/green 115-230 V AC 5 directions of approaches The matching separate actuator 3SE5000-0AV0. must be ordered separately
Item | Value |
---|---|
Country of Origin | DE |
Width sensor | 50 mm |
Forced opening | true |
Coating housing | Other |
Height of sensor | 33 mm |
Length of sensor | 89 mm |
Type of interface | None |
Material housing | Plastic |
With status indication | true |
Degree of protection (NEMA) | 12 |
Construction type housing | Cuboid |
Suitable for safety functions | true |
Degree of protection (IP) | IP66/IP67 |
Number of safety auxiliary contacts | 2 |
Explosion safety category for gas | None |
Explosion safety category for dust | None |
Number of contacts as change-over contact | 0 |
Type of switching contact | Slow-action switch |
Number of contacts as normally open contact | 1 |
Rated operation current Ie at AC-15, 230 V | 4 A |
Ambient temperature during operating | -25 °C |
Number of contacts as normally closed contact | 2 |
Type of interface for safety communication | None |
Type of electric connection | Cable entry metrical |
