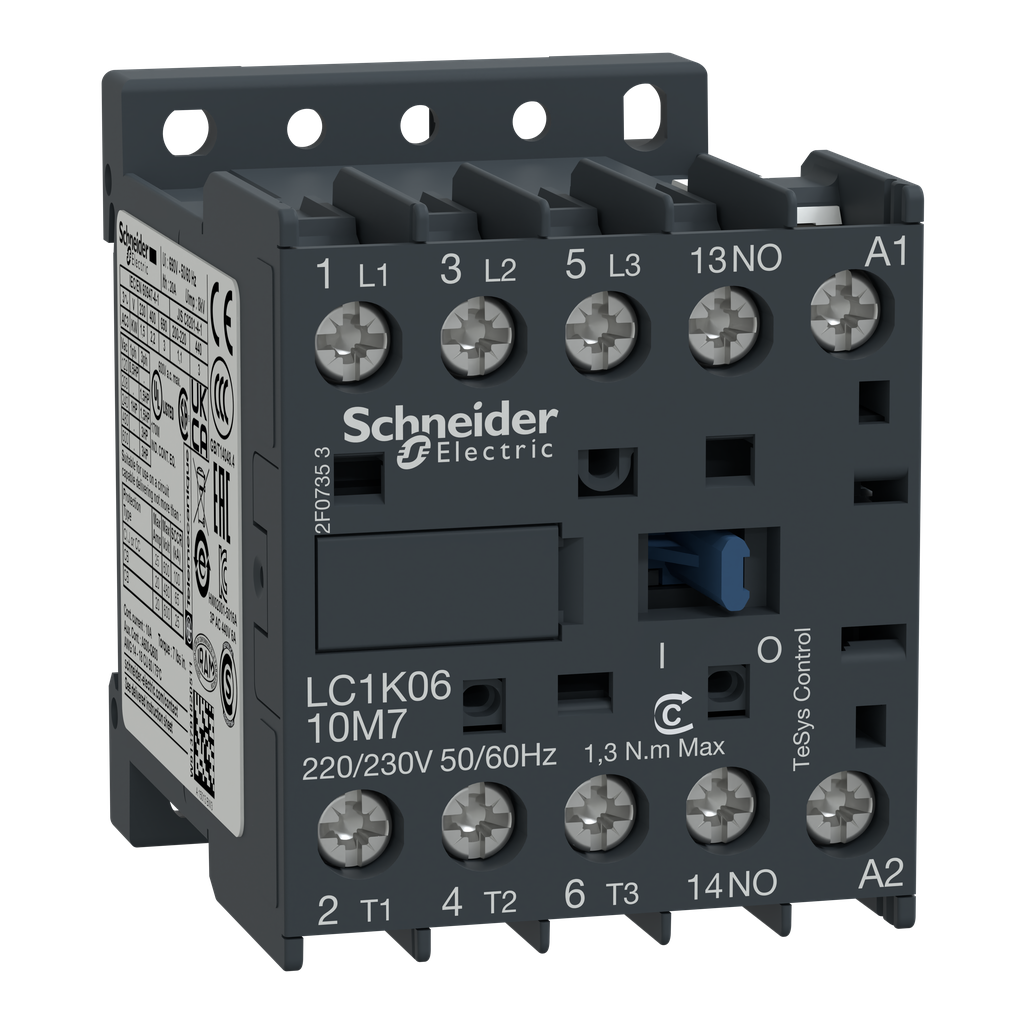

LC1K0610M7 - Contactor, TeSys K, 3P, AC-3, lt or eq to 440V 6A, 1 NO aux., 220 to 230VAC coil

LC1K0610M7 - Contactor, TeSys K, 3P, AC-3, lt or eq to 440V 6A, 1 NO aux., 220 to 230VAC coil

by Schneider Electric
$18,072.84 - $18,072.84
$18,072.84
$18,072.84 - $18,072.84
$18,072.84

LC1K0610M7 is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 6A AC-3 2.2kW@400V, it includes a 220V 50/60Hz AC coil and 1NO auxiliary contact. LC1K0610M7 is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 2.2kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it includes a 220V 50/60Hz AC coil and 1NO built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Provides a control circuit compatible with 50Hz and 60Hz supplies and 1NO built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).



No Specifications Available.



No Links Available.
