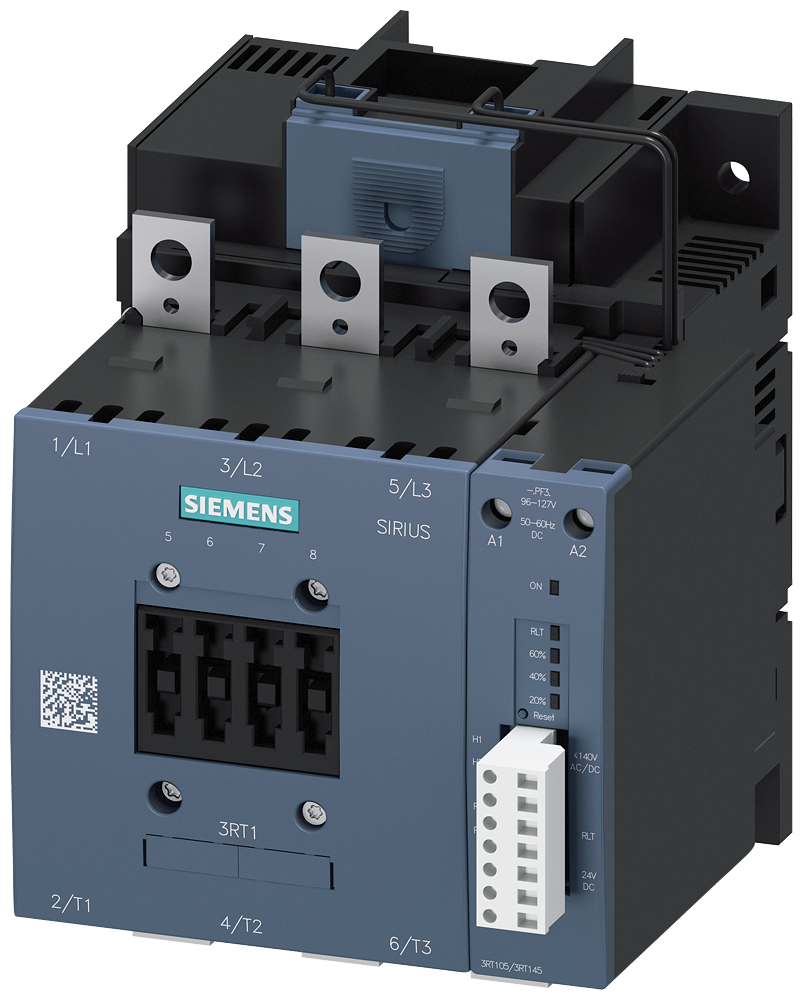

3RT1055-6PP35 - CONTACTOR S6 150A 200-277VUC 3P RLT
by Siemens
Original price
$726.71
-
Original price
$726.71
Original price
$726.71
$726.71
-
$726.71
Current price
$726.71
Contactor,IEC,Sirius, Standard,3 Pole,Non-Reversing 200 - 277 AC/DC Coil Frame Size S6,150A Panel Mount 1 NO <(>&<)> 1 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 5
| Item | Value |
|---|---|
| Country of Origin | DE |
| Modular version | true |
| Voltage type for actuating | AC/DC |
| Rated operation power NEMA | 91.93734375 kW |
| Rated operation power at AC-3, 400 V | 75 kW |
| Rated operation power at AC-4, 400 V | 75 kW |
| Rated control supply voltage Us at DC | 200 V |
| Rated operation current Ie at AC-1, 400 V | 185 A |
| Rated operation current Ie at AC-3, 400 V | 150 A |
| Rated operation current Ie at AC-4, 400 V | 132 A |
| Rated control supply voltage Us at AC 50HZ | 200 V |
| Rated control supply voltage Us at AC 60HZ | 200 V |
| Number of main contacts as normally open contact | 3 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Type of electrical connection of main circuit | Rail connection |
