3VA5145-4EC31-1AA0 - BRKR 3VA51 3P 45A 25KA FTAM NAV

3VA5145-4EC31-1AA0 - BRKR 3VA51 3P 45A 25KA FTAM NAV

by Siemens
$193.89 - $193.89
$193.89
$193.89 - $193.89
$193.89

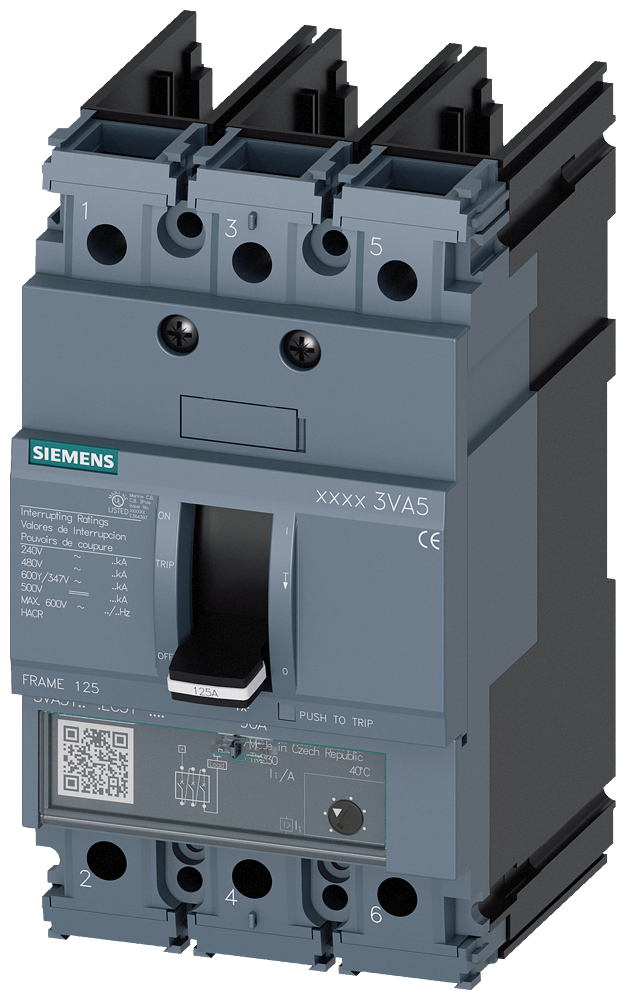

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA51 FRAME WITH STANDARD (CLASS S) BREAKING CAPACITY. 45A 3-POLE (14KAIC AT 600Y/347) (25KAIC AT 480V). TM230 TRIP UNIT WITH FIXED Ir ADJUSTABLE Ii. SPECIAL FEATURES: WITHOUT LUGS NAVAL RATED 50C. DIMENSIONS (W x H x D) IN: 3 x 5.5 x 3.7.



Specifications
Item Value
Country of Origin CZ
Number of poles 3
Rated voltage 690 V
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 45 A
With switched-off indicator false
Overload release current setting 32 A
Type of control element Rocker lever
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional true
Suitable for DIN rail (top hat rail) mounting true
Type of electrical connection of main circuit Other
Adjustment range undelayed short-circuit release 225 A
Number of auxiliary contacts as change-over contact 0
Position of connection for main current circuit Other
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Device construction Built-in device fixed built-in technique
