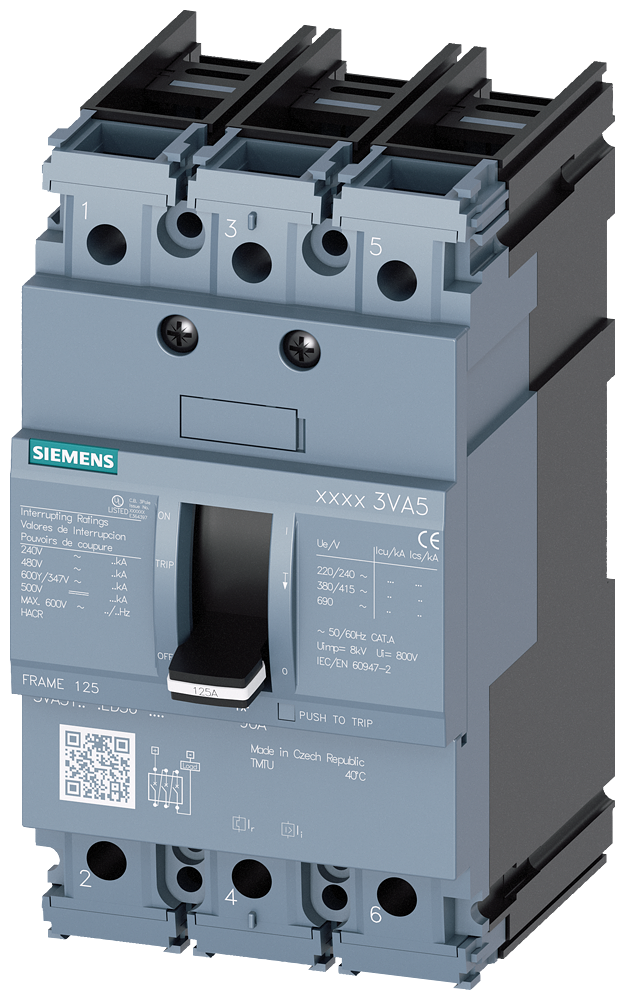

3VA5130-5ED36-0AA0 - BRKR 3VA51 3P 30A 35KA FTFM AL

3VA5130-5ED36-0AA0 - BRKR 3VA51 3P 30A 35KA FTFM AL

by Siemens
$234.56 - $234.56
$234.56
$234.56 - $234.56
$234.56

SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA51 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 30A 3-POLE (18KAIC AT 600Y/347) (35KAIC AT 480V). TM210 TRIP UNIT WITH FIXED Ir FIXED Ii. SPECIAL FEATURES: CONNECTION WITH ALUMINUM LUG. DIMENSIONS (W x H x D) IN: 3 x 5.5 x 3.7.



Specifications
Item Value
Country of Origin CZ
Number of poles 3
Rated voltage 690 V
Motor drive optional true
Motor drive integrated false
Degree of protection (IP) IP40
Rated permanent current Iu 30 A
With switched-off indicator false
Overload release current setting 30 A
Type of control element Rocker lever
Integrated earth fault protection false
Complete device with protection unit true
With integrated under voltage release false
DIN rail (top hat rail) mounting optional false
Suitable for DIN rail (top hat rail) mounting false
Type of electrical connection of main circuit Other
Adjustment range undelayed short-circuit release 300 A
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally open contact 0
Number of auxiliary contacts as normally closed contact 0
Position of connection for main current circuit Front side
Device construction Built-in device fixed built-in technique
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz 55 kA
