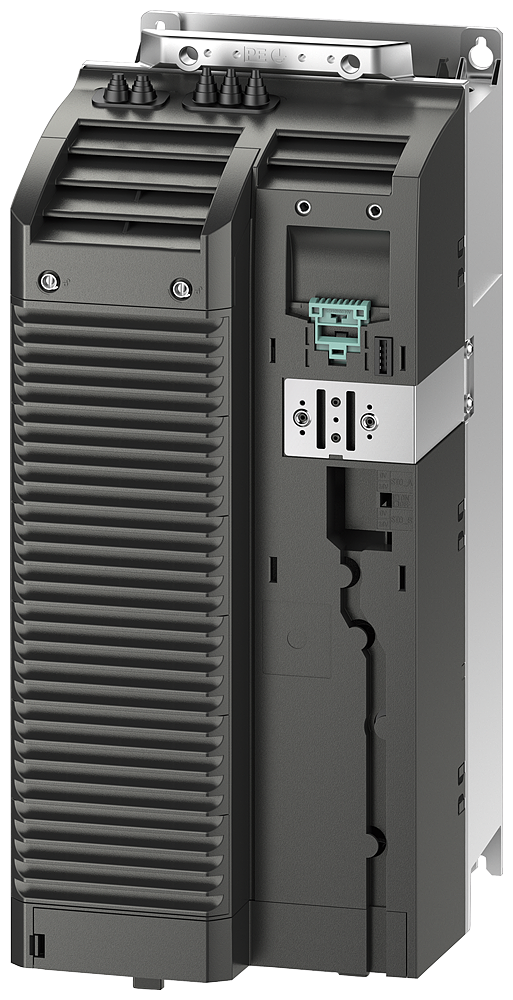

6SL32101RH220AL0 - SINAMICS PM240P-2 IP20-FSD-A-690V-15kW
by Siemens
Original price
$3,005.98
-
Original price
$3,005.98
Original price
$3,005.98
$3,005.98
-
$3,005.98
Current price
$3,005.98
SINAMICS G120 POWER MODULE PM240P-2 WITH BUILT IN CL. A FILTER 3AC500-690V+10/-20% 47-63Hz OUTPUT HIGH OVERLOAD: 11KW FOR 150% 60S. 100% 240S; AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 15kW FOR 135% 3S.110% 57S.100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD). FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 SP6 HF1
Item | Value |
---|---|
Depth | 237 mm |
Width | 200 mm |
Height | 472 mm |
Mains voltage | 500 V |
Number of phases input | 3 |
Number of phases output | 3 |
Max. output frequency | 550 Hz |
Type of converter | U converter |
Degree of protection (IP) | IP20 |
Nominal output current I2N | 19 A |
4-quadrant operation possible | false |
Integrated breaking resistance | false |
Application in industrial area permitted | true |
Relative symmetric net frequency tolerance | 5 % |
Relative symmetric net voltage tolerance | -10 % |
Max. output at linear load at rated output voltage | 11 kW |
Max. output at quadratic load at rated output voltage | 15 kW |
Application in domestic- and commercial area permitted | false |
Country of Origin | DE |
