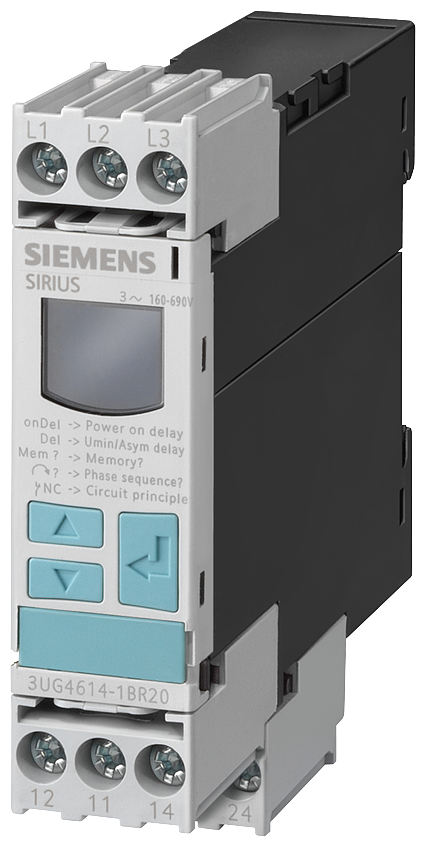

3UG4614-1BR20 - ASM_MONITOR_Rel_Scr_Term
by Siemens
Original price
$145.95
-
Original price
$145.95
Original price
$145.95
$145.95
-
$145.95
Current price
$145.95
ASM_MONITOR 3UG4614-1BR20-Monitoring_Relays_Screw_Terminal
Item | Value |
---|---|
Depth | 91 millimetre |
Country of Origin | DE |
Width | 23 millimetre |
Height | 92 millimetre |
Number of changers | 2 |
Type of actuation | AC |
Max. delay time | 20 second |
Min. delay time | 0.1 second |
Number of making contacts | 0 |
Max. response delay | 20 second |
Min. response delay | 0.1 second |
Number of breaking contacts | 0 |
Phase sequence monitoring | true |
detachable terminals present | true |
Asymmetry recognition present | true |
max. voltage measuring range | 690 volt |
min. voltage measuring range | 160 volt |
Phase failure recognition possible | true |
function over-voltage detection present | false |
function undervoltage recognition present | true |
Design of electrical connection | Screw connection |
Max. rated AC voltage for controls, 50 Hz | 690 volt |
max. rated AC voltage for controls (60 Hz) | 690 volt |
min. rated control voltage Us with AC 50 Hz | 160 volt |
min. rated control voltage Us with AC 60 Hz | 160 volt |
