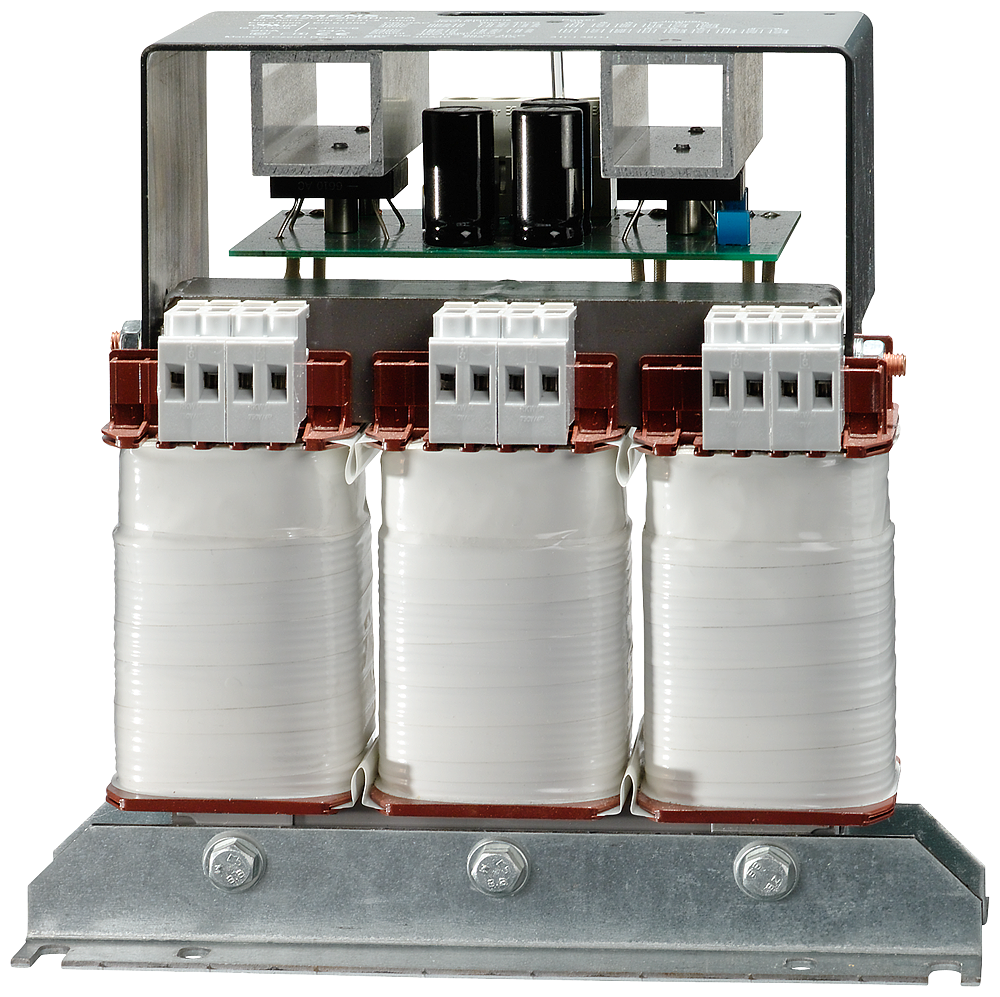

4AV3100-2EB00-0A - PWR SY, 3-PH, 400/230VAC IN, 24VDC SEC

4AV3100-2EB00-0A - PWR SY, 3-PH, 400/230VAC IN, 24VDC SEC

by Siemens
$586.53 - $586.53
$586.53
$586.53 - $586.53
$586.53

POWER SUPPLY; PHASES:3; PN(KW):0,36; UPRI(V):400+/-20 / 230+/-10; USEC(V DC):24; ISEC(A DC):15/18 (60/40 CEL); F(HZ):50...60; VECTOR GR./SHIELD WNG.:II0 /0; PROTECTION CL.:I; TA/ISOKL:60 /B; W(%):4,2; IP00; TYPE OF TERMINALS:SCREW CONNECTION; INSTALLATION:SCREW; EN 61558-2-6, EN61131-2 >UL/CSA-RECOGNIZED<(><<)> >SAFETY ISOLATING TRANSFORMER<(><<)>



Specifications
Item Value
Country of Origin CZ
Depth 4.527559 inch
Width 6.456693 inch
Height 7.480315 inch
Short-circuit-proof false
Built-in width 6.456693 inch
Rail mounting possible false
Wall mounting possible false
Degree of protection (IP) IP00
Voltage type of supply voltage AC
Type of electric connection Screw connection
