1SBN010140R1322 - CA4-22U Auxiliary Contact Block

1SBN010140R1322 - CA4-22U Auxiliary Contact Block

by ABB
$15.14 - $15.14
$15.14
$15.14 - $15.14
$15.14

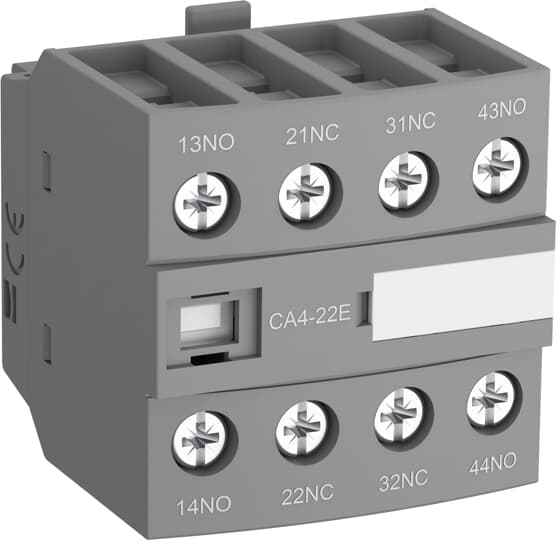

CA4-22U is a 4-pole front mounted auxiliary contact block equipped with screw terminals. CA4-..U version offers terminal assortment matching the marking of 3-pole AF(C)09..16(Z)(B)-30-01 contactors. CA4-22U is available with 2 N.O. and 2 N.C. instantaneous contacts for standard industrial environments.



Ordering
Item Value
Minimum Order Quantity 1 piece
Customs Tariff Number 85389099
Product Main Type Accessories for Block Contactors

Dimensions
Item Value
Product Net Width 43 mm
Product Net Depth / Length 39.5 mm
Product Net Height 43 mm
Product Net Weight 0.055 kg

Technical
Item Value
Connecting Capacity Auxiliary Circuit Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Rigid Solid 1/2x 1 ... 2.5 mm²Rigid Stranded 1/2x 1 ... 2.5 mm²
Maximum Electrical Switching Frequency (AC-15) 1200 cycles per hour(DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency 3600 cycles per hour
Mounted Auxiliary Contacts 2 NO, 2 NC
Mounting Type Front mounting
Number of Auxiliary Contacts NC 2
Number of Auxiliary Contacts NO 2
Number of Poles 4
Rated Frequency (f) Auxiliary Circuit 50 / 60 Hz
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Insulation Voltage (Ui) acc. to IEC 60947-5-1 690 Vacc. to UL/CSA 600 V
Rated Operational Current AC-15 (Ie) (500 V) 2 A(690 V) 2 A(24 / 127 V) 6 A(220 / 240 V) 4 A(400 / 440 V) 3 A
Rated Operational Current DC-13 (Ie) (24 V) 6 A / 144 W(48 V) 2.8 A / 134 W(72 V) 1 A / 72 W(110 V) 0.55 A / 60 W(125 V) 0.55 A / 69 W(220 V) 0.27 A / 60 W(250 V) 0.27 A / 68 W(400 V) 0.15 A / 60 W(500 V) 0.13 A / 65 W(600 V) 0.1 A / 60 W
Rated Operational Voltage Auxiliary Circuit 690 V
Rated Short-time Withstand Current Low Voltage (Icw) for 0.1 s 140 Afor 1 s 100 A
Standards IEC/EN 60947-5-1, UL 60947-5-1, CSA C22.2 No. 60947-5-1-14
Suitable For AF09AF09ZAF12AF12ZAF16AF16ZAFC09AFC12AFC16AF09BAF09ZBAF12BAF12ZBAF16BAF16ZB
Terminal Type Screw Terminals
Tightening Torque Auxiliary Circuit 1.2 N·m
Wire Stripping Length Auxiliary Circuit 10 mm

Technical UL/CSA
Item Value
Connecting Capacity Auxiliary Circuit UL/CSA Rigid Solid 1/2x 18-14 AWGRigid Stranded 1/2x 18-14 AWG
Pilot Duty UL/CSA A600Q600
Tightening Torque UL/CSA Auxiliary Circuit 11 in·lb

Environmental
Item Value
Conventional Free-air Thermal Current (Ith) acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Degree of Protection acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
RoHS Information 2CMT2021-006277
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

Classifications
Item Value
eClass V11.0 : 27371302
E-Number (Finland) 3706519
E-Number (Sweden) 3211422
ETIM 9 EC000041 - Auxiliary contact block
IDEA Granular Category Code (IGCC) 4743 >> Auxiliary contact block
Object Classification Code K
