3SE5244-0LE10-1AE0 - LIMSW, METAL LEVR, PLASTIC ROLLER, 2NC, 2M20
by Siemens
Original price
$68.03
-
Original price
$68.03
Original price
$68.03
$68.03
-
$68.03
Current price
$68.03

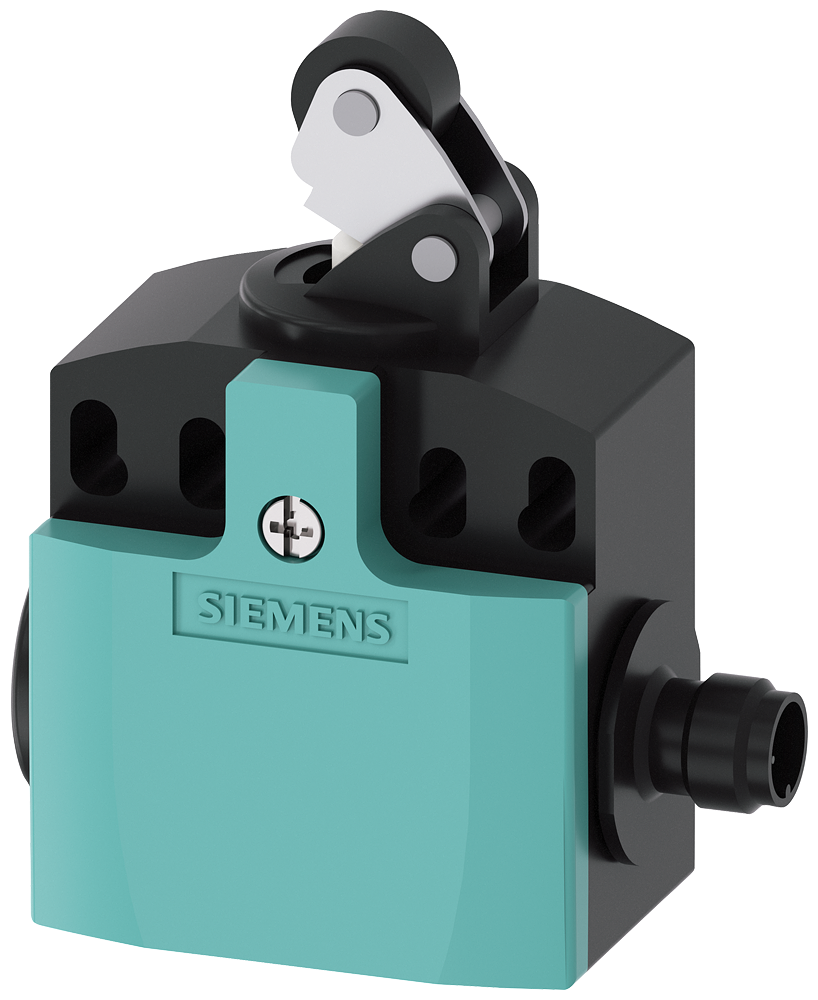

SIRIUS POSITION SWITCH; MOLDED-PLASTIC ENCLOSURE WIDE, 50MM CONNECTION 2X(M20X1.5); SNAP-ACT. CONTACTS 1NO/2NC W/M12 CONNECTOR,4-POLE, 2NC CONNECTED ON THE RIGHT, PIN ASSIGNM.: PIN1=21, PIN2=22, PIN3=31, PIN4=32 MAX.250V AND 4A, ROLLER LEVER W/MOLDED PLASTIC ROLLER 13MM
Item | Value |
---|---|
Width sensor | 50 mm |
Country of Origin | DE |
Forced opening | true |
Coating housing | Other |
Height of sensor | 33 mm |
Type of interface | None |
Length of sensor | 91.5 mm |
Output electronic | false |
Material housing | Plastic |
With status indication | false |
Degree of protection (NEMA) | 12 |
Construction type housing | Cuboid |
Switching function latching | false |
Suitable for safety functions | true |
Degree of protection (IP) | IP66/IP67 |
Type of control element | Roller lever |
Number of safety auxiliary contacts | 2 |
Switching function | Quick-break switch |
Explosion safety category for gas | None |
Explosion safety category for dust | None |
Number of contacts as change-over contact | 0 |
Rated operation current Ie at AC-15, 24 V | 4 A |
Rated operation current Ie at DC-13, 24 V | 3 A |
Number of contacts as normally open contact | 0 |
Rated operation current Ie at AC-15, 125 V | 4 A |
Ambient temperature during operating | -25 °C |
Number of contacts as normally closed contact | 2 |
Type of interface for safety communication | None |
Rated operation current Ie at DC-13, 125 V | 0.55 A |
Type of electric connection | Plug-in connection M12 |
Alignment of the control element | Roller cam straight |
