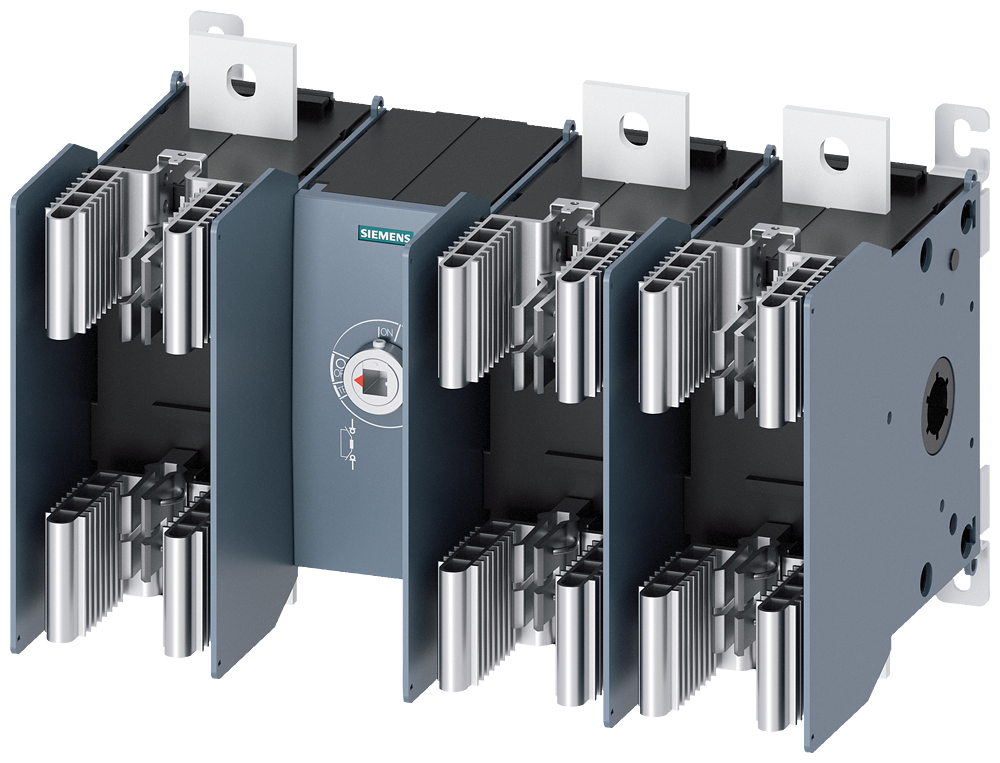

3KF5363-0MF51 - SWITCH DISCONNECT, W/FUSE 3KF SITTOR 630A
by Siemens
Original price
$1,374.64
-
Original price
$1,374.64
Original price
$1,374.64
$1,374.64
-
$1,374.64
Current price
$1,374.64
Switch disconnector with fuse 3KF SITOR, 630 A, Size 5, 3-pole, for LV HRC fuse Sz. 2 and 3 for semiconductor protection, front operating mechanism, central, basic unit without handle, flat terminal without fuses
Item | Value |
---|---|
Cable entry | Other |
Country of Origin | DE |
Number of poles | 3 |
Motor drive optional | false |
Suitable for fuses | NH2, NH3 |
Version as main switch | true |
With error protection | false |
Motor drive integrated | false |
Type of control element | Other |
Version as safety switch | true |
Equipped with connectors | false |
Rated permanent current Iu | 630 A |
Suitable for ground mounting | true |
Position control element | Front side |
Max. rated operation voltage Ue AC | 690 V |
Suitable for front mounting 4-hole | false |
Degree of protection (IP), front side | IP00 |
Rated operation power at AC-23, 400 V | 355 kW |
Rated short-time withstand current lcw | 22 kA |
Version as emergency stop installation | true |
Conditioned rated short-circuit current Iq | 100 kA |
Type of electrical connection of main circuit | Flat plug-in connection |
