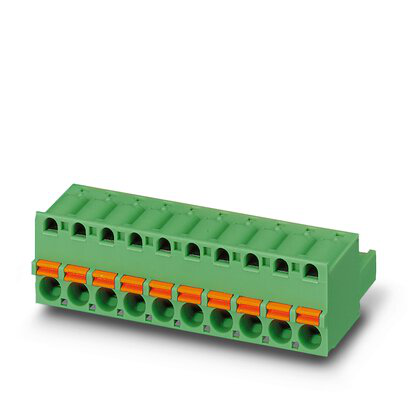

1006962 - FKC 2,5/ 8-ST-5,08 BD:TEL - PCB connector (Qty. 50)

1006962 - FKC 2,5/ 8-ST-5,08 BD:TEL - PCB connector (Qty. 50)

by Phoenix Contact
$298.22 - $298.22
$298.22
$298.22 - $298.22
$298.22

PCB connector, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 8, number of rows: 1, number of positions: 8, number of connections: 8, product range: FKC 2,5/..-ST, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard



Specifications
Item Value
Country of Origin Germany
Color Green
Nominal Current 12 A
Contact Surface Tin
Type Of Contact Female connector
Number Of Potentials 8
Number Of Rows 1
Number Of Positions 8
Product Range FKC 2
Pitch 5.08 mm
Connection Method Push-in spring connection
Locking Clip Locking clip
Locking Without
Mounting Without
Type Of Packaging packed in cardboard
