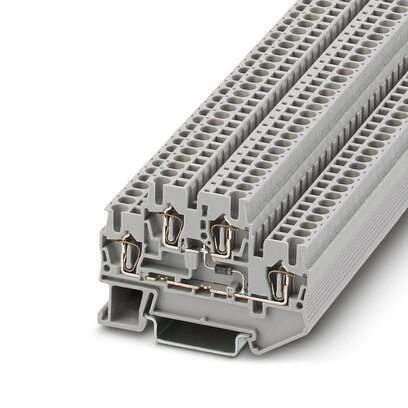

3031555 - STTB 2,5-DIO/O-U - Component terminal block (Qty. 50)
Original price
$238.93
-
Original price
$238.93
Original price
$238.93
$238.93
-
$238.93
Current price
$238.93
Component terminal block, The max. current is determined by the diode. Installed: Diode 1N 4007, reverse voltage: 1300 V, maximum continuous current: 0.5 A., with integrated diode, nom. voltage: 500 V, nominal current: 0.5 A, 1st and 2nd level, connection method: Spring-cage connection, Rated cross section: 2.5 mm², cross section: 0.08 mm² - 4 mm², mounting: NS 35/7,5, NS 35/15, color: gray
Item | Value |
---|---|
Country of Origin | Poland |
Reverse Voltage | 1300 V |
Nominal Current | 0.5 A |
Connection Method | Spring-cage connection |
Rated Cross Section | 2.5 mm² |
Cross Section | 0.08 mm² - 4 mm² |
Mounting | NS 35/7 |
Color | Gray |
