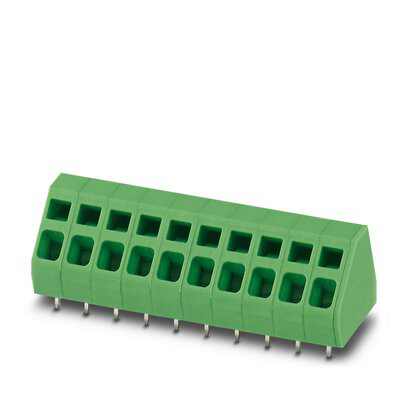

1765625 - ZFKDSA 2,5-5,08-20 - PCB terminal block (Qty. 50)

1765625 - ZFKDSA 2,5-5,08-20 - PCB terminal block (Qty. 50)

by Phoenix Contact
$290.60 - $290.60
$290.60
$290.60 - $290.60
$290.60

PCB terminal block, nominal current: 24 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², number of potentials: 20, number of rows: 1, number of positions per row: 20, product range: ZFKDS(A) 2,5, pitch: 5.08 mm, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, color: green, Pin layout: Linear double pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard



Specifications
Item Value
Country of Origin Poland
Nominal Current 24 A
Number Of Potentials 20
Number Of Rows 1
Product Range ZFKDS(A) 2
Pitch 5.08 mm
Connection Method Spring-cage connection
Mounting Wave Soldering
Color Green
Pin Layout Linear double pinning
Type Of Packaging packed in cardboard
