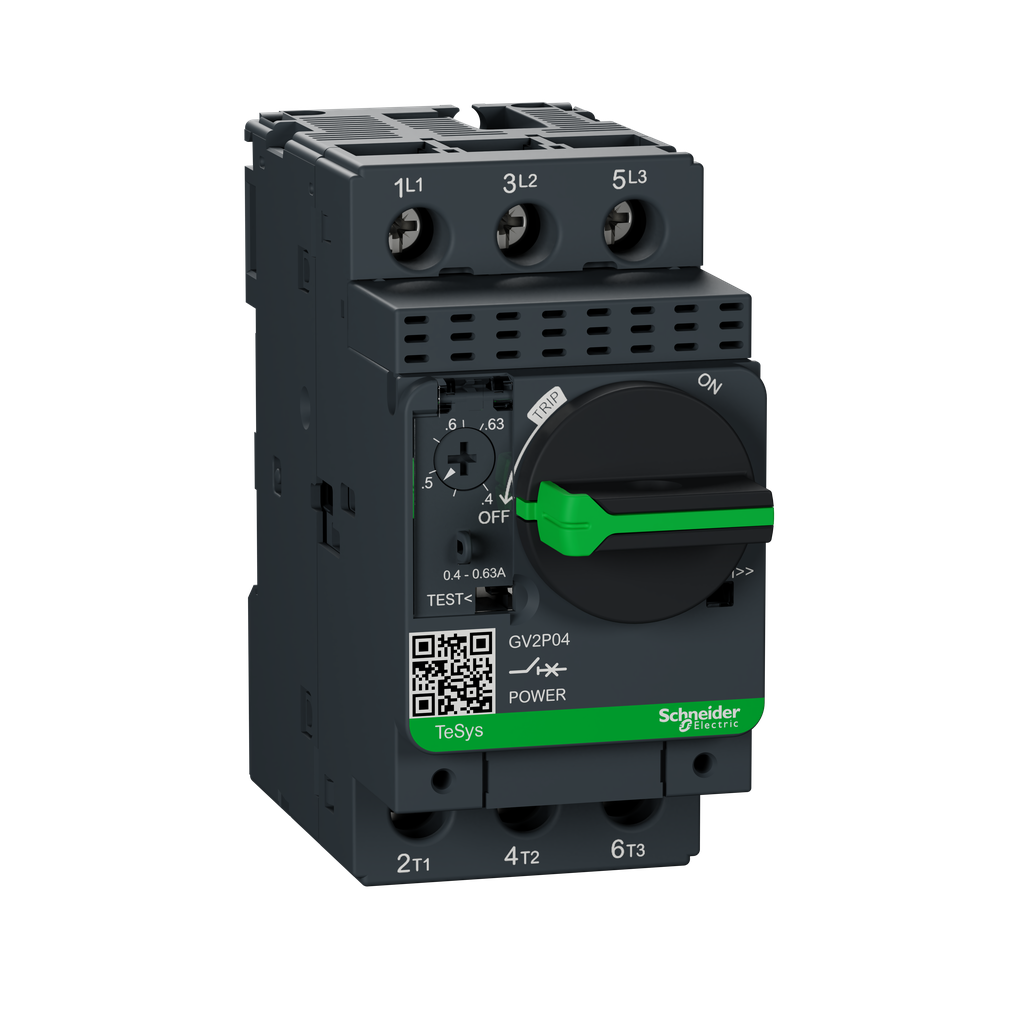

GV2P04 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, rotary handle, 0.4…0.63 A, screw clamp terminals (Qty. 20)

GV2P04 - TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, rotary handle, 0.4…0.63 A, screw clamp terminals (Qty. 20)

by Schneider Electric
$986.57 - $986.57
$986.57
$986.57 - $986.57
$986.57

TeSys GV motor circuit breaker, 3 poles (3P), 0.63A/690V, for 3-phase motor applications 0.12-0.18kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.4-0.63A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary knob guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).



No Specifications Available.



No Links Available.
