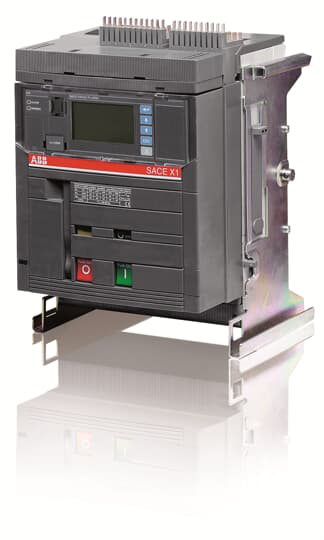

1SDA062270R1 - X1B 800 PR333/P LSI In=800A 3p W MP
by ABB
Original price
$10,922.71
-
Original price
$10,922.71
Original price
$10,922.71
$10,922.71
-
$10,922.71
Current price
$10,922.71
MOVING PART FOR CIRCUIT-BREAKER EMAX X1B 800 THREE-POLE WITH SOLID-STATE RELEASE IN AC PR333/P-LSI R 800 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Item | Value |
---|---|
Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
Item | Value |
---|---|
Environmental Information | 1SDC200009D0201 |
REACH Declaration | 9AKK108466A1425 |
RoHS Information | 9AKK108466A1424 |
RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Item | Value |
---|---|
Minimum Order Quantity | 1 piece |
Customs Tariff Number | 85362090 |
Item | Value |
---|---|
Product Net Width | 284 mm |
Product Net Height | 343 mm |
Product Net Depth / Length | 254 mm |
Product Net Weight | 14 kg |
Item | Value |
---|---|
Current Type | AC |
Electrical Durability | Ue =< 440 V 6000 cycleUe = 500 ... 690 V 3000 cycle30 cycles per hour |
Mechanical Durability | 12500 cycle60 cycles per hour |
Number of Poles | 3 |
Power Loss | 104 W |
Product Main Type | SACE Emax |
Product Name | Air Circuit Breaker |
Product Type | Air Circuit Breaker |
Rated Current (In) | 800 A |
Rated Voltage (Ur) | 690 V |
Rated Impulse Withstand Voltage (Uimp) | 12 kV |
Rated Insulation Voltage (Ui) | 1000 V |
Rated Operational Current (Ie) | 800 A |
Rated Operational Voltage | 690 V AC |
Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(660 V AC) 42 kA(690 V AC) 42 kA |
Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (220 V AC) 42 kA(230 V AC) 42 kA(380 V AC) 42 kA(400 V AC) 42 kA(415 V AC) 42 kA(440 V AC) 42 kA(500 V AC) 42 kA(660 V AC) 42 kA(690 V AC) 42 kA |
Rated Uninterrupted Current (Iu) | 800 A |
Release | PR333/P LSI |
Release Type | EL |
Short-Circuit Performance Level | B |
Standards | IEC |
Sub-type | X1 |
Terminal Connection Type | Withdrawable Circuit-Breakers |
Version | W |
Item | Value |
---|---|
Object Classification Code | Q |
WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
