1SBN070156T1000 - LDC4 Additional Coil Terminal Block (Qty. 10)

1SBN070156T1000 - LDC4 Additional Coil Terminal Block (Qty. 10)

by ABB
$20.80 - $20.80
$20.80
$20.80 - $20.80
$20.80

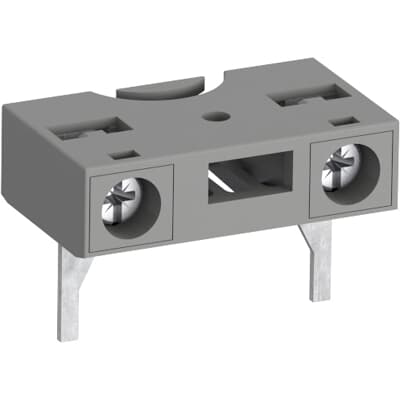

LDC4 is an additional coil terminal blocks equipped with screw terminals for a top and/or bottom access to the coil terminals of AF(C)(S)09(Z)(B)...96 contactors and NF(C)(Z)(B) contactor relays.



Ordering
Item Value
Minimum Order Quantity 10 piece
Customs Tariff Number 85369010
Product Main Type Accessories for Block Contactors

Dimensions
Item Value
Product Net Width 35 mm
Product Net Depth / Length 22 mm
Product Net Height 24 mm
Product Net Weight 0.01 kg

Technical
Item Value
Connecting Capacity Control Circuit Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid Solid 1/2x 1 ... 2.5 mm²Rigid Stranded 1/2x 1 ... 2.5 mm²
Rated Frequency (f) Control Circuit 50 / 60 Hz
Rated Insulation Voltage (Ui) acc. to IEC 60947-5-1 690 V
Standards IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
Suitable For AF09AF09ZAF12AF12ZAF16AF16ZAF26AF26ZAF30AF30ZAF38AF38ZAF40AF52AF65AF80AF96AFC09AFC12AFC16AFC26AFC30AFC38AFC40AFC52AFC65AFC80AFC96AFS09AFS09ZAFS12AFS12ZAFS16AFS16ZAFS26AFS26ZAFS30AFS30ZAFS38AFS38ZAFS40AFS52AFS65AFS80AFS96AF09BAF09ZBAF12BAF12ZBAF16BAF16ZBAF26BAF26ZBAF30BAF30ZBAF38BAF38ZBAF40BAF52BAF65BAF80BAF96BNF22ENFZ22ENF31ENFZ31ENF40ENFZ40ENF44ENFZ44ENF53ENFZ53ENF62ENFZ62ENF71ENFZ71ENF80ENFZ80ENF33/11NF51/11NFC22ENFC31ENFC40ENFC44ENFC53ENFC62ENFC71ENFC80ENFZB22ENFB22ENFZB31ENFB31ENFZB40ENFB40ENFZB44ENFB44ENFZB62ENFB62ENFZB80ENFB80E
Terminal Type Screw Terminals
Tightening Torque Control Circuit 1.2 N·m
Wire Stripping Length Control Circuit 10 mm

Technical UL/CSA
Item Value
Connecting Capacity Control Circuit UL/CSA Rigid Solid 1/2x 18-14 AWGRigid Stranded 1/2x 18-14 AWG
Tightening Torque UL/CSA Control Circuit 11 in·lb

Environmental
Item Value
RoHS Information 2CMT2021-006277
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

Classifications
Item Value
eClass V11.1 : 27371392
E-Number (Finland) 3706553
E-Number (Sweden) 3211409
ETIM 9 EC002498 - Accessories/spare parts for low-voltage switch technology
IDEA Granular Category Code (IGCC) 4547 >> Terminal blocks
