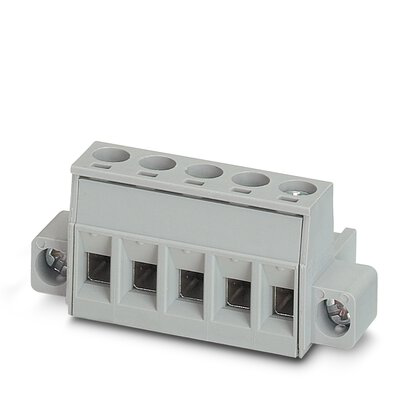

5452582 - BCP-508F-16 BK - PCB connector (Qty. 100)
Original price
$841.18
-
Original price
$841.18
Original price
$841.18
$841.18
-
$841.18
Current price
$841.18
PCB connector, nominal cross section: 2.5 mm², color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 16, number of rows: 1, number of positions: 16, number of connections: 16, product range: BCP-F, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: H1L Philipps recess with slotted Torx, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: BASICLINE 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard
Item | Value |
---|---|
Country of Origin | China |
Color | Black |
Nominal Current | 12 A |
Contact Surface | Tin |
Type Of Contact | Female connector |
Number Of Potentials | 16 |
Number Of Rows | 1 |
Number Of Positions | 16 |
Product Range | BCP-F |
Pitch | 5.08 mm |
Connection Method | Screw connection with tension sleeve |
Screw Head Form | H1L Philipps recess with slotted Torx |
Locking Clip | without locking clip |
Locking | Screw Locking |
Mounting | Screw Flange |
Type Of Packaging | packed in cardboard |
