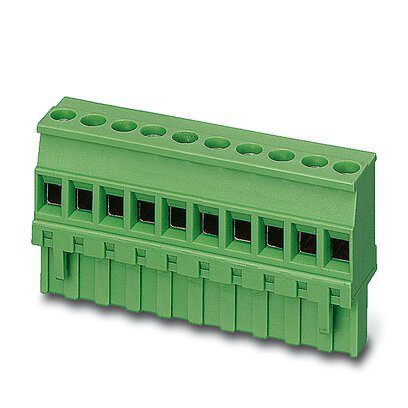

1372515 - MVSTBR 2,5/ 2-ST-5,08BDMC:-DFS - PCB connector (Qty. 100)
Original price
$156.59
-
Original price
$156.59
Original price
$156.59
$156.59
-
$156.59
Current price
$156.59
PCB connector, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of rows: 1, number of positions: 2, product range: MVSTBR 2,5/..-ST, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, conductor/PCB connection direction: 90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without
Item | Value |
---|---|
Country of Origin | Germany |
Color | Green |
Nominal Current | 12 A |
Contact Surface | Tin |
Type Of Contact | Female connector |
Number Of Rows | 1 |
Number Of Positions | 2 |
Product Range | MVSTBR 2 |
Pitch | 5.08 mm |
Connection Method | Screw connection with tension sleeve |
Locking Clip | Locking clip |
Locking | Without |
Mounting | Without |
