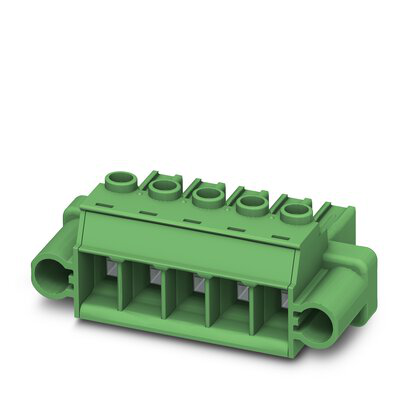

1700424 - PC 5/ 4-STF1-7,62 BK BDWH:NZ 1CP - Printed-circuit board connector (Qty. 50)
Original price
$333.01
-
Original price
$333.01
Original price
$333.01
$333.01
-
$333.01
Current price
$333.01
PCB connector, nominal cross section: 6 mm², color: black, nominal current: 41 A, rated voltage (III/2): 1000 V, contact surface: Tin, type of contact: Female connector, number of rows: 1, number of positions: 4, product range: PC 5/..-STF1, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 5, locking: Screw locking, mounting: Screw flange
Item | Value |
---|---|
Country of Origin | Germany |
Color | Black |
Nominal Current | 41 A |
Contact Surface | Tin |
Type Of Contact | Female connector |
Number Of Rows | 1 |
Number Of Positions | 4 |
Product Range | PC 5/..-STF1 |
Pitch | 7.62 mm |
Connection Method | Screw connection with tension sleeve |
Locking Clip | without locking clip |
Locking | Screw Locking |
Mounting | Screw Flange |
