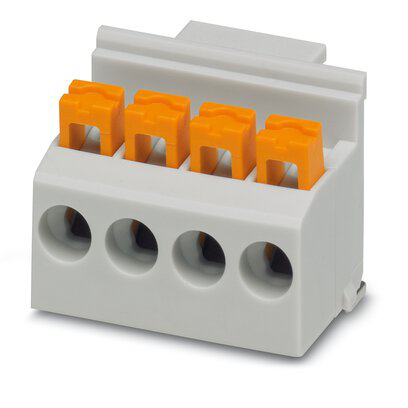

2201309 - FKDSO 2,5/ 4-L GN BD: S35-A2 - PCB terminal block (Qty. 50)

2201309 - FKDSO 2,5/ 4-L GN BD: S35-A2 - PCB terminal block (Qty. 50)

by Phoenix Contact
$359.39 - $359.39
$359.39
$359.39 - $359.39
$359.39

PCB terminal block, nominal current: 22 A, rated voltage (III/2): 250 V, nominal cross section: 2.5 mm², number of potentials: 4, number of rows: 1, number of positions per row: 4, product range: FKDSO 2,5/..-L, pitch: 5 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1. Product with pin output on left side



Specifications
Item Value
Country of Origin Poland
Nominal Current 22 A
Number Of Potentials 4
Number Of Rows 1
Product Range FKDSO 2
Pitch 5 mm
Connection Method Push-in spring connection
Mounting Wave Soldering
Color Green
Pin Layout Linear pinning
