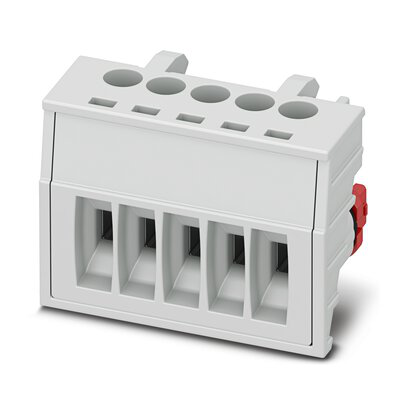

1084024 - ICC25-PSC1,5/5-3,5-AA-7035 - Printed-circuit board connector (Qty. 50)
Original price
$163.25
-
Original price
$163.25
Original price
$163.25
$163.25
-
$163.25
Current price
$163.25
PCB connector, nominal cross section: 1.5 mm², color: light grey, rated voltage (III/2): 150 V, contact surface: Tin, type of contact: Female connector, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: ICC..-PSC1,5/..-3,5, pitch: 3.5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, locking: without, mounting: without, type of packaging: packed in cardboard
| Item | Value |
|---|---|
| Country of Origin | China |
| Color | Light Grey |
| Contact Surface | Tin |
| Type Of Contact | Female connector |
| Number Of Potentials | 5 |
| Number Of Rows | 1 |
| Number Of Positions | 5 |
| Product Range | ICC..-PSC1 |
| Pitch | 3.5 mm |
| Connection Method | Screw connection with tension sleeve |
| Screw Head Form | L Slotted |
| Locking Clip | Locking clip |
| Locking | Without |
| Mounting | Without |
| Type Of Packaging | packed in cardboard |
