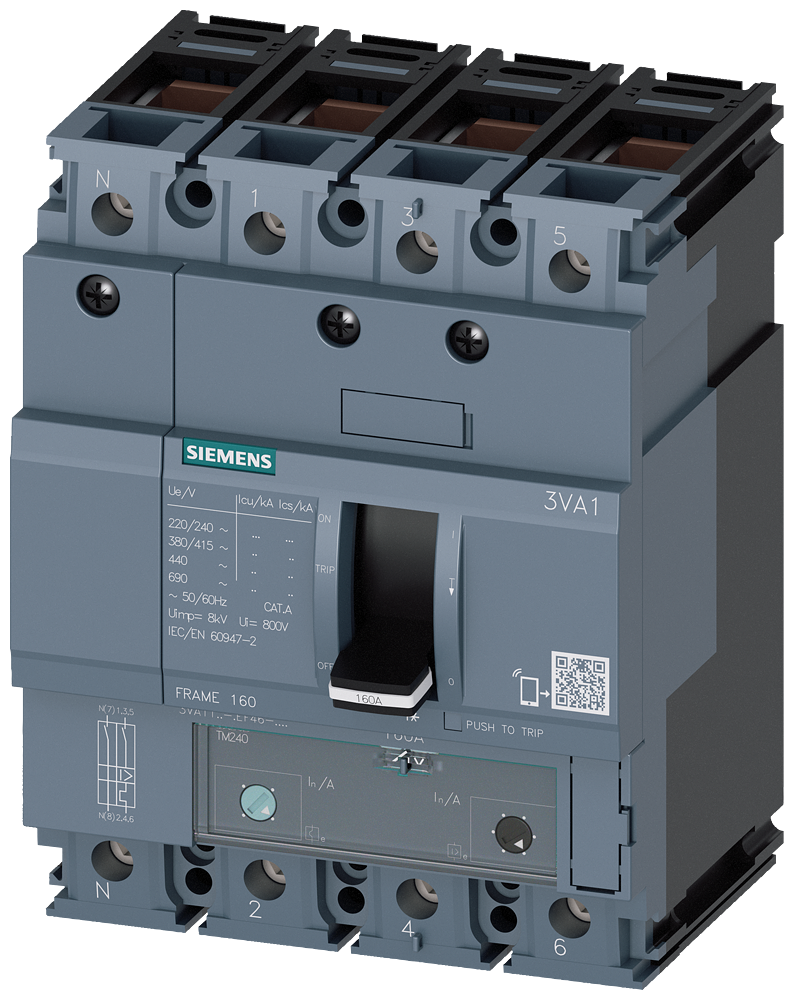

3VA1163-3EF46-0AA0 - BRKR 3VA11 4P 63A 25KA ATAM BOX
by Siemens
Original price
$233.11
-
Original price
$233.11
Original price
$233.11
$233.11
-
$233.11
Current price
$233.11
SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA11 FRAME WITH LOW (CLASS N) BREAKING CAPACITY. 63A 4-POLE Icu: (7KAIC AT 690V) (25KAIC AT 415V). TM240 TRIP UNIT WITH ADJUSTABLE Ir ADJUSTABLE Ii. SPECIAL FEATURES: CONNECTION WITH BOX TERMINAL / STEEL WRAP AROUND LUG. DIMENSIONS (W x H x D) IN: 4 x 5.1 x 3.5.
| Item | Value |
|---|---|
| Country of Origin | CZ |
| Number of poles | 4 |
| Rated voltage | 690 V |
| Motor drive optional | true |
| Motor drive integrated | false |
| Degree of protection (IP) | IP40 |
| Rated permanent current Iu | 63 A |
| With switched-off indicator | false |
| Overload release current setting | 44 A |
| Type of control element | Rocker lever |
| Integrated earth fault protection | false |
| Complete device with protection unit | true |
| With integrated under voltage release | false |
| DIN rail (top hat rail) mounting optional | false |
| Suitable for DIN rail (top hat rail) mounting | false |
| Adjustment range undelayed short-circuit release | 315 A |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Type of electrical connection of main circuit | Frame clamp |
| Position of connection for main current circuit | Front side |
| Device construction | Built-in device fixed built-in technique |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 25 kA |
Declaration of Conformity/UK Declaration of Conformity
Manufacturer
For use in hazardous locations
IECEx
DEKRA EXAM
DMT
other/Confirmation
Manufacturer
