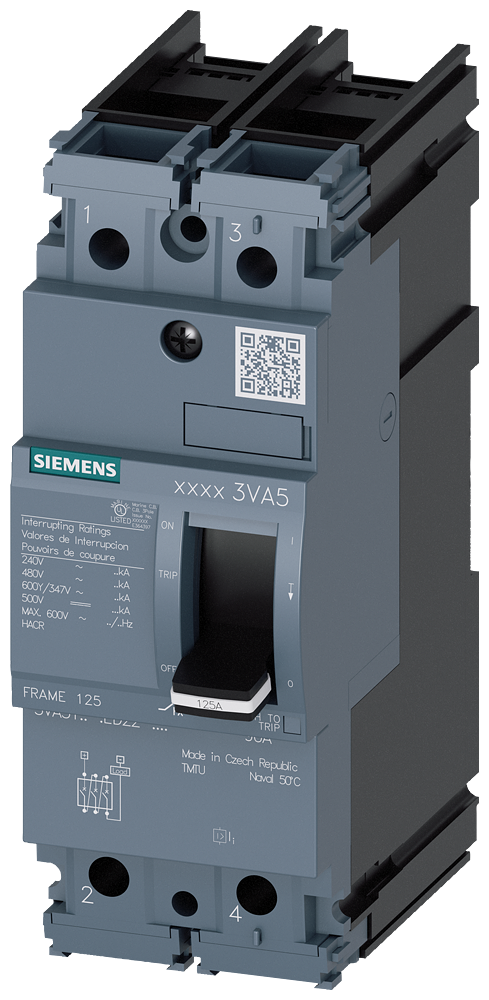

3VA5112-6ED22-1AA0 - BRKR 3VA51 2P 125A 65KA FTFM NAV NUT
by Siemens
Original price
$442.07
-
Original price
$442.07
Original price
$442.07
$442.07
-
$442.07
Current price
$442.07
SIEMENS LOW VOLTAGE 3VA UL MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETIC TRIP UNIT. 3VA51 FRAME WITH HIGH (CLASS H) BREAKING CAPACITY. 125A 2-POLE (25KAIC AT 600Y/347) (65KAIC AT 480V). TM210 TRIP UNIT WITH FIXED Ir FIXED Ii. SPECIAL FEATURES: CONNECTION WITH LUG TERMINAL / NUT KEEPER NAVAL RATED 50C. DIMENSIONS (W x H x D) IN: 2 x 5.5 x 3.7.
Item | Value |
---|---|
Country of Origin | CZ |
Number of poles | 2 |
Rated voltage | 415 V |
Motor drive optional | false |
Motor drive integrated | false |
Degree of protection (IP) | IP40 |
Rated permanent current Iu | 125 A |
With switched-off indicator | false |
Type of control element | Rocker lever |
Overload release current setting | 125 A |
Integrated earth fault protection | false |
Complete device with protection unit | true |
With integrated under voltage release | false |
DIN rail (top hat rail) mounting optional | false |
Suitable for DIN rail (top hat rail) mounting | false |
Number of auxiliary contacts as change-over contact | 0 |
Adjustment range undelayed short-circuit release | 1250 A |
Number of auxiliary contacts as normally open contact | 0 |
Number of auxiliary contacts as normally closed contact | 0 |
Position of connection for main current circuit | Front side |
Device construction | Built-in device fixed built-in technique |
