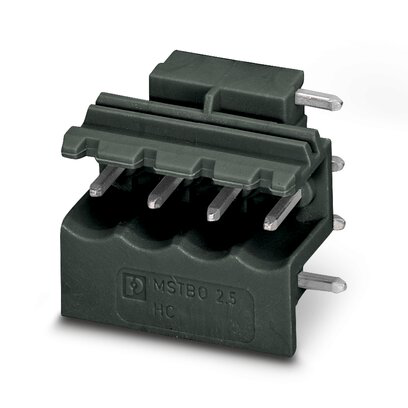

1069103 - MSTBO 2,5/ 4-G1R THRR44 BK CR:1 - PCB header (Qty. 100)

1069103 - MSTBO 2,5/ 4-G1R THRR44 BK CR:1 - PCB header (Qty. 100)

by Phoenix Contact
$296.83 - $296.83
$296.83
$296.83 - $296.83
$296.83

PCB headers, nominal cross section: 2.5 mm², color: black, nominal current: 16 A, rated voltage (III/2): 320 V, type of contact: Male connector, number of rows: 1, product range: MSTBO 2,5/..-G1R-THR, pitch: 5 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, locking: without, type of packaging: 44 mm wide tape, Product with pin output on right side



Specifications
Item Value
Country of Origin Poland
Color Black
Nominal Current 16 A
Type Of Contact Male connector
Number Of Rows 1
Product Range MSTBO 2
Pitch 5 mm
Mounting THR Soldering
Pin Layout Linear pinning
Locking Without
Type Of Packaging 44 mm wide tape
