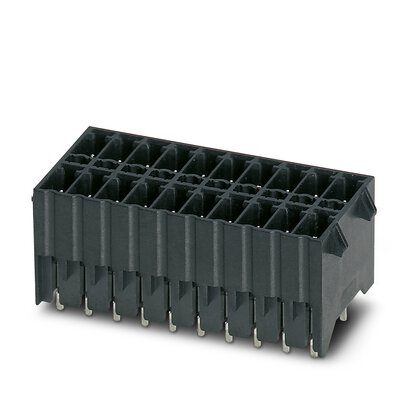

1952623 - MCDNV 1,5/14-G1-3,5 RNP14THR - PCB header (Qty. 40)
PCB headers, nominal cross section: 1.5 mm², color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, type of contact: Male connector, number of potentials: 28, number of rows: 2, number of positions: 14, number of connections: 28, product range: MCDNV 1,5/..-G1-RN-THR, pitch: 3.5 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 1.4 mm, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting: Engagement nose, type of packaging: packed in cardboard, Article with engagement nose. The pin length is 14 mm. User information and design recommendations on Through Hole Reflow Technology can be found at: "Downloads"
| Item | Value |
|---|---|
| Country of Origin | Germany |
| Color | Black |
| Nominal Current | 8 A |
| Contact Surface | Tin |
| Type Of Contact | Male connector |
| Number Of Potentials | 28 |
| Number Of Rows | 2 |
| Number Of Positions | 14 |
| Product Range | MCDNV 1 |
| Pitch | 3.5 mm |
| Mounting | THR Soldering |
| Pin Layout | Linear pinning |
| Locking | Snap-in Locking |
| Type Of Packaging | packed in cardboard |
