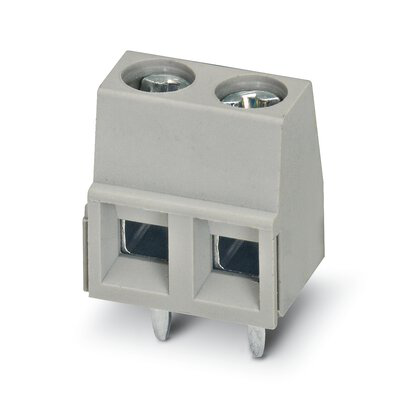

1045905 - BC-508X10- 3 GY BD:NC-NO - PCB terminal block (Qty. 100)
Original price
$117.67
-
Original price
$117.67
Original price
$117.67
$117.67
-
$117.67
Current price
$117.67
PCB terminal block, nominal current: 13.5 A, rated voltage (III/2): 400 V, nominal cross section: 1.5 mm², number of potentials: 3, number of rows: 1, number of positions per row: 3, product range: BC-X10, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: H1L Philipps recess with slotted Torx, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: signal grey, Pin layout: Linear pinning, Solder pin [P]: 3.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard
Item | Value |
---|---|
Country of Origin | China |
Nominal Current | 13.5 A |
Number Of Potentials | 3 |
Number Of Rows | 1 |
Product Range | BC-X10 |
Pitch | 5.08 mm |
Connection Method | Screw connection with tension sleeve |
Screw Head Form | H1L Philipps recess with slotted Torx |
Mounting | Wave Soldering |
Color | Signal Grey |
Pin Layout | Linear pinning |
Type Of Packaging | packed in cardboard |
