POWER SUPPLY_120/230VAC_24VDC_20A

POWER SUPPLY_120/230VAC_24VDC_20A

by Siemens
$426.12 - $426.12
$426.12
$426.12 - $426.12
$426.12

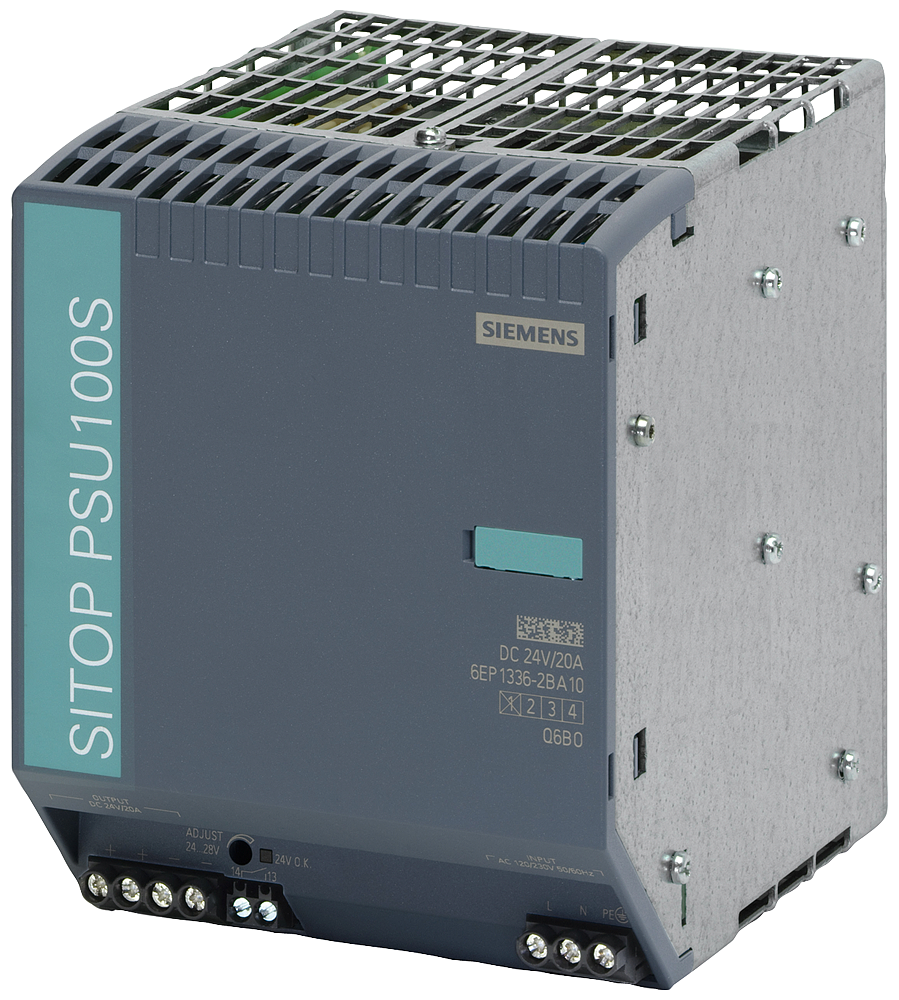

SITOP PSU100S 24 V/20 A 6EP1336-IP20



Specifications
Item Value
Country of Origin RO
Depth 150 mm
Width 115 mm
Height 145 mm
Stabilized true
Power output 480 W
Built-in width 120 mm
Modular version true
Built-in height 245 mm
Short-circuit-proof true
Max. output current 1 20 A
Rail mounting possible true
Wall mounting possible false
Degree of protection (IP) IP20
Direct mounting possible false
Output voltage stabilized true
1st secondary output voltage 24 V
Secondary voltage adjustable true
Voltage type of supply voltage AC
Nominal value output voltage 1 24 V
Nominal value output current 1 20.0 A
Rated supply voltage at AC 50 Hz 230 V
Rated supply voltage at AC 60 Hz 120 V
Type of electric connection Screw connection
