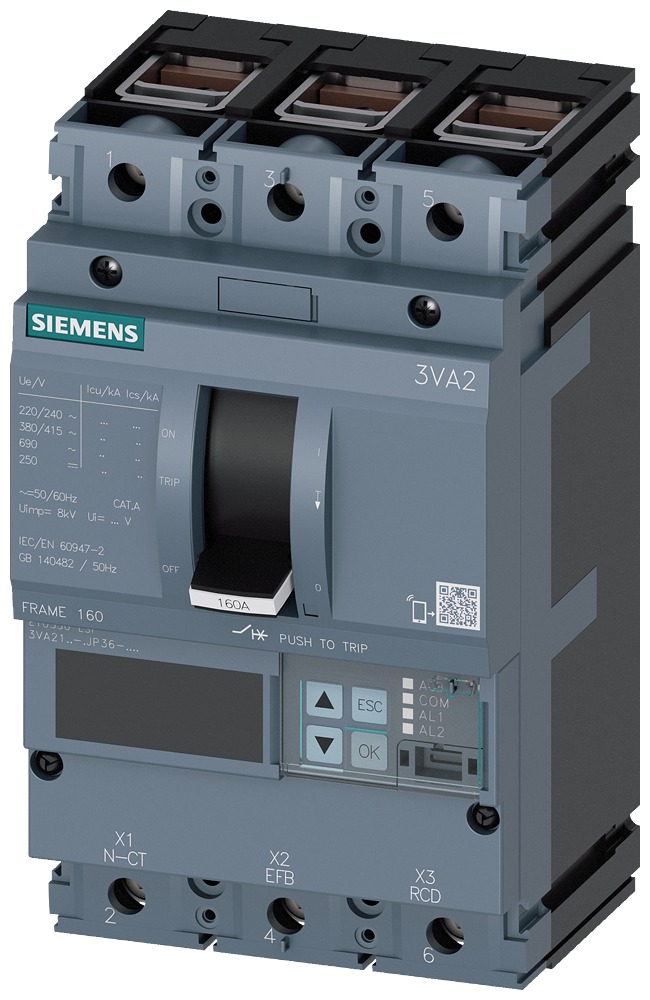

BRKR 3VA21 3P 160A 55KA ETU5-LSI BOX
by Siemens
Original price
$869.27
-
Original price
$869.27
Original price
$869.27
$869.27
-
$869.27
Current price
$869.27
SIEMENS LOW VOLTAGE 3VA IEC MOLDED CASE CIRCUIT BREAKER WITH ELECTRONIC TRIP UNIT. 3VA21 FRAME WITH MEDIUM (CLASS M) BREAKING CAPACITY. 160A 3-POLE Icu: (2.5KAIC AT 690V) (55KAIC AT 415V). ETU550 TRIP UNIT LCD LSI. SPECIAL FEATURES: CONNECTION WITH BOX TERMINAL / STEEL WRAP AROUND LUG. DIMENSIONS (W x H x D) IN: 4.1 x 7.1 x 4.2.
| Item | Value |
|---|---|
| Number of poles | 3 |
| Country of Origin | CZ |
| Rated voltage | 690 V |
| Motor drive optional | true |
| Motor drive integrated | false |
| Degree of protection (IP) | IP40 |
| Rated permanent current Iu | 160 A |
| With switched-off indicator | false |
| Overload release current setting | 63 A |
| Type of control element | Rocker lever |
| Integrated earth fault protection | false |
| Complete device with protection unit | true |
| With integrated under voltage release | false |
| DIN rail (top hat rail) mounting optional | true |
| Suitable for DIN rail (top hat rail) mounting | true |
| Adjustment range undelayed short-circuit release | 240 A |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 0 |
| Number of auxiliary contacts as normally closed contact | 0 |
| Type of electrical connection of main circuit | Frame clamp |
| Position of connection for main current circuit | Front side |
| Device construction | Built-in device fixed built-in technique |
| Adjustment range short-term delayed short-circuit release | 96 A |
| Rated short-circuit breaking capacity lcu at 400 V, 50 Hz | 55 kA |
