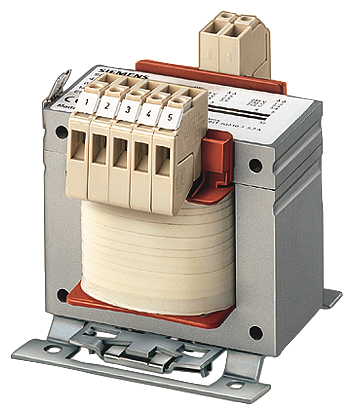

TRANSFORMER, 1-PH, PRI 600-230V, SEC 2X115V

TRANSFORMER, 1-PH, PRI 600-230V, SEC 2X115V

by Siemens
$1,062.24 - $1,062.24
$1,062.24
$1,062.24 - $1,062.24
$1,062.24

TRANSFORMER SITAS; PHASES:1; PN/PN(S6)(KVA):1,6 /7,3; UPRI(V):600-575-550-525-500- 480-460-440-415-400-240-230; USEC(V):2X115; ISEC(A):2X6,96; F(HZ):50...60; VECTOR GR./SHIELD WNG.:II0 /0; TA/ISOKL:40 /B; IP00; TYPE OF TERMINALS:SCREW/TAB CONNECTION; INSTALLATION:SCREW; EN 61558-2-1, -2-2, -2-4 >UL/CSA-RECOGNIZED<(><<)> >CONTROL CIRCUIT TRANSFORMER<(><<)> >ISOLATION TRANSFORMER<(><<)>



Specifications
Item Value
Depth 138 millimetre
Country of Origin CZ
Width 176 millimetre
Height 164 millimetre
Protection type IP IP00
min. primary voltage7 460 volt
max. primary voltage 1 600 volt
max. primary voltage 2 575 volt
max. primary voltage 3 550 volt
max. primary voltage 4 525 volt
max. primary voltage 5 500 volt
max. primary voltage 6 480 volt
max. primary voltage 7 460 volt
max. primary voltage 8 440 volt
max. primary voltage 9 415 volt
min. primary voltage 1 600 volt
min. primary voltage 2 575 volt
min. primary voltage 3 550 volt
min. primary voltage 4 525 volt
min. primary voltage 5 500 volt
min. primary voltage 6 480 volt
min. primary voltage 8 440 volt
min. primary voltage 9 415 volt
max. primary voltage 10 400 volt
min. primary voltage 10 400 volt
max. secondary voltage 1 230 volt
max. secondary voltage 2 115 volt
min. secondary voltage 1 230 volt
min. secondary voltage 2 115 volt
Rated performance 1600 volt ampere
designed as safety transformer false
suitable for series installation false
designed as isolating transformer false
designed as compensator transformer false
relative short-circuit voltage 2.1 percent
suitable for circuit-board mounting false
Insulation Material Class acc. to IEC 85 B
