MAIN-CTR/EM.STOP SW. 25A/690V 400V/9.5KW
by Siemens
Original price
$133.98
-
Original price
$133.98
Original price
$133.98
$133.98
-
$133.98
Current price
$133.98

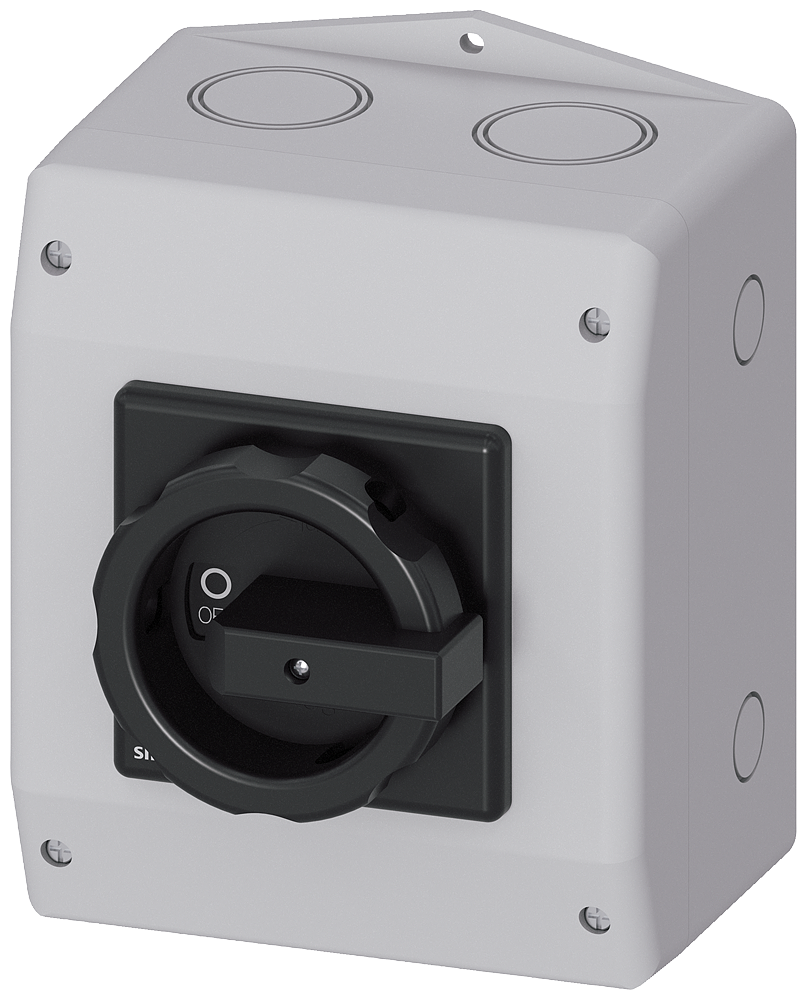

MAIN-CTR/EM.STOP SW. 25A/690V 400V/9.5KW MAIN SWITCH 6-POLE IU=25, P/AC-23A WITH 400V=9.5KW 1NO+1NC, 1 N TERMINAL INSULATION-ENCLOSED, IP65 ROT. BLACK
| Item | Value |
|---|---|
| Country of Origin | DE |
| Number of poles | 6 |
| Interlockable | true |
| Number of switches | 1 |
| Motor drive optional | false |
| Version as main switch | true |
| Colour control element | Black |
| Motor drive integrated | false |
| Version as safety switch | true |
| Voltage release optional | false |
| Degree of protection (NEMA) | Other |
| Version as reversing switch | false |
| Suitable for ground mounting | false |
| Suitable for front mounting centre | true |
| Suitable for front mounting 4-hole | false |
| Type of control element | Short thumb-grip |
| Degree of protection (IP), front side | IP65 |
| Version as maintenance-/service switch | true |
| Version as emergency stop installation | false |
| Number of auxiliary contacts as change-over contact | 0 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Type of electrical connection of main circuit | Frame clamp |
| Device construction | Built-in device fixed built-in technique |
